Step1: Product

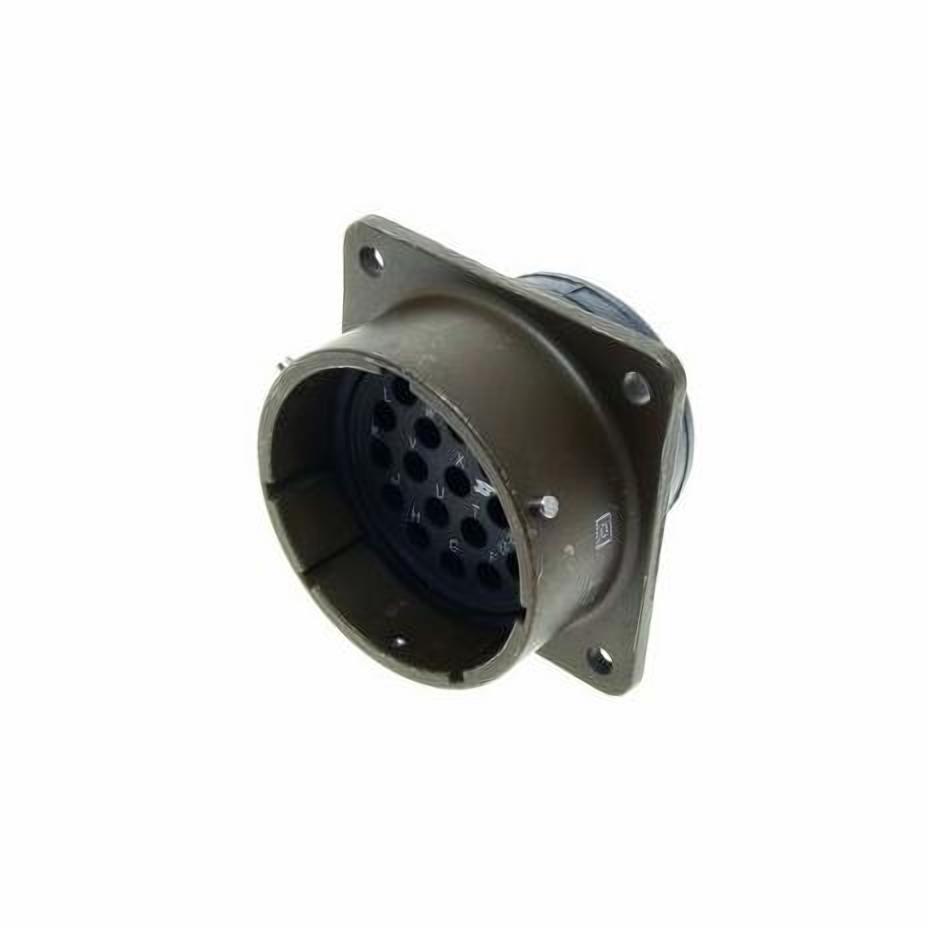

ITT Cannon, LLC KPSE02E22-21P
Image shown is a representation only
Manufacturer
Manufacturer No
KPSE02E22-21P
Packaging
Bag
Description
CONN RCPT MALE 21POS GOLD CRIMP
Detailed Description
21 Position Circular Connector Receptacle, Male Pins Crimp
DataSheet
Mfr
ITT Cannon, LLC
Color
Olive Drab
Series
KPSE
Packaging
Bag
Orientation
N (Normal)
Part Status
Active
Termination
Crimp
Shell Finish
Olive Drab Cadmium
Mounting Type
Panel Mount
Connector Type
Receptacle, Male Pins
Fastening Type
Bayonet Lock
Shell Material
Aluminum Alloy
Voltage Rating
1000VAC, 1400VDC
Mounting Feature
Flange
Primary Material
Metal
Ingress Protection
Environment Resistant
Base Product Number
KPSE
Number of Positions
21
Shell Size - Insert
22-21
Current Rating (Amps)
13A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
50.0µin (1.27µm)
| Attribute | Value |
|---|---|
| Mfr | ITT Cannon, LLC |
| Color | Olive Drab |
| Series | KPSE |
| Packaging | Bag |
| Orientation | N (Normal) |
| Part Status | Active |
| Termination | Crimp |
| Shell Finish | Olive Drab Cadmium |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Bayonet Lock |
| Shell Material | Aluminum Alloy |
| Voltage Rating | 1000VAC, 1400VDC |
| Mounting Feature | Flange |
| Primary Material | Metal |
| Ingress Protection | Environment Resistant |
| Base Product Number | KPSE |
| Number of Positions | 21 |
| Shell Size - Insert | 22-21 |
| Current Rating (Amps) | 13A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
