Step1: Product

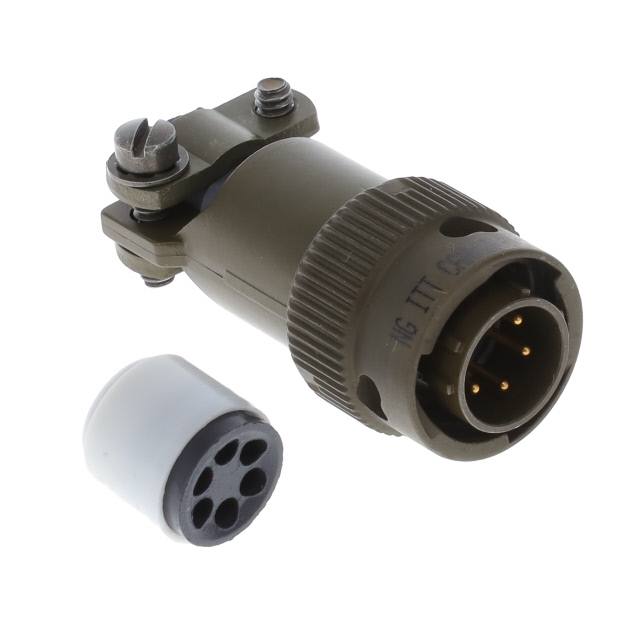

ITT Cannon, LLC MS3116F10-6P
Image shown is a representation only
Manufacturer
Manufacturer No
MS3116F10-6P
Quantity
3
Availability
In Stock
Packaging
Bulk
Description
CONN PLUG 6POS STRAIGHT W/PINS
Detailed Description
6 Position Circular Connector Plug, Male Pins Solder Cup
DataSheet
Mfr
ITT Cannon, LLC
Color
Olive Drab
Series
KPT
Features
Strain Relief
Packaging
Bulk
Orientation
N (Normal)
Part Status
Active
Termination
Solder Cup
Shell Finish
Olive Drab Cadmium
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pins
Fastening Type
Bayonet Lock
Shell Material
Aluminum Alloy
Voltage Rating
600VAC, 850VDC
Primary Material
Metal
Ingress Protection
Environment Resistant
Base Product Number
MS3116F10
Number of Positions
6
Shell Size - Insert
10-6
Current Rating (Amps)
7.5A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
50.0µin (1.27µm)
| Attribute | Value |
|---|---|
| Mfr | ITT Cannon, LLC |
| Color | Olive Drab |
| Series | KPT |
| Features | Strain Relief |
| Packaging | Bulk |
| Orientation | N (Normal) |
| Part Status | Active |
| Termination | Solder Cup |
| Shell Finish | Olive Drab Cadmium |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins |
| Fastening Type | Bayonet Lock |
| Shell Material | Aluminum Alloy |
| Voltage Rating | 600VAC, 850VDC |
| Primary Material | Metal |
| Ingress Protection | Environment Resistant |
| Base Product Number | MS3116F10 |
| Number of Positions | 6 |
| Shell Size - Insert | 10-6 |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
