Step1: Product

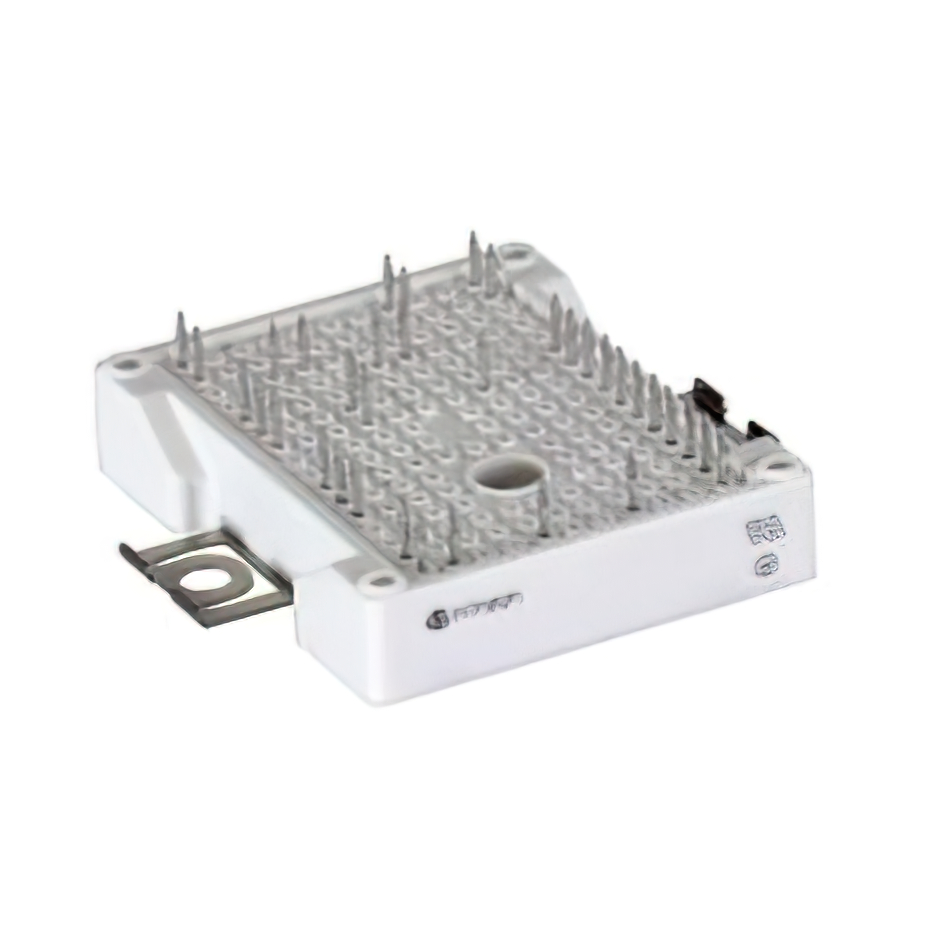

Infineon Technologies FF200R12W2T7EB11BPSA1
Image shown is a representation only
Manufacturer
Manufacturer No
FF200R12W2T7EB11BPSA1
Package
Module
Packaging
Tray
Description
IGBT MODULE 1200V 165A 20MW
Detailed Description
IGBT Module Trench Field Stop Half Bridge Inverter 1200 V 165 A 20 mW Chassis Mount
Input
Standard
Series
TRENCHSTOP™
IGBT Type
Trench Field Stop
Packaging
Tray
Part Status
Active
Power - Max
20 mW
Manufacturer
Infineon Technologies
Configuration
Half Bridge Inverter
Mounting Type
Chassis Mount
NTC Thermistor
Yes
Package / Case
Module
Operating Temperature
-40°C ~ 175°C (TJ)
Vce(on) (Max) @ Vge, Ic
1.8V @ 15V, 200A
Current - Collector (Ic) (Max)
165 A
Input Capacitance (Cies) @ Vce
43400 pF @ 25 V
Current - Collector Cutoff (Max)
15 µA
Voltage - Collector Emitter Breakdown (Max)
1200 V
| Attribute | Value |
|---|---|
| Input | Standard |
| Series | TRENCHSTOP™ |
| IGBT Type | Trench Field Stop |
| Packaging | Tray |
| Part Status | Active |
| Power - Max | 20 mW |
| Manufacturer | Infineon Technologies |
| Configuration | Half Bridge Inverter |
| Mounting Type | Chassis Mount |
| NTC Thermistor | Yes |
| Package / Case | Module |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 200A |
| Current - Collector (Ic) (Max) | 165 A |
| Input Capacitance (Cies) @ Vce | 43400 pF @ 25 V |
| Current - Collector Cutoff (Max) | 15 µA |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
