Step1: Product

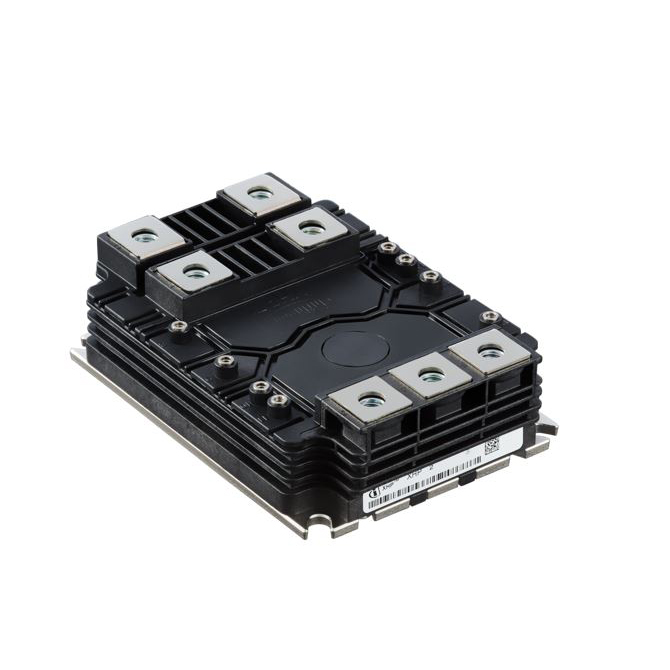

Infineon Technologies FF2000UXTR33T2M1BPSA1
Image shown is a representation only
Manufacturer
Manufacturer No
FF2000UXTR33T2M1BPSA1
Package
Module
Packaging
Box
Description
MOSFET 2N-CH 3300V 9AG-XHP2K33
Detailed Description
Mosfet Array 3300V (3.3kV) 925A (Tc) Chassis Mount AG-XHP2K33
DataSheet
Series
CoolSiC™, XHP™2
Packaging
Box
Technology
SiCFET (Silicon Carbide)
Part Status
Active
Manufacturer
Infineon Technologies
Configuration
2 N-Channel (Half Bridge)
Mounting Type
Chassis Mount
Package / Case
Module
Vgs(th) (Max) @ Id
5.55V @ 900mA
Base Product Number
FF2000UXTR
Operating Temperature
-40°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
2.4mOhm @ 1000A, 15V
Supplier Device Package
AG-XHP2K33
Gate Charge (Qg) (Max) @ Vgs
5000nC @ 15V
Drain to Source Voltage (Vdss)
3300V (3.3kV)
Input Capacitance (Ciss) (Max) @ Vds
203000pF @ 1800V
Current - Continuous Drain (Id) @ 25°C
925A (Tc)
| Attribute | Value |
|---|---|
| Series | CoolSiC™, XHP™2 |
| Packaging | Box |
| Technology | SiCFET (Silicon Carbide) |
| Part Status | Active |
| Manufacturer | Infineon Technologies |
| Configuration | 2 N-Channel (Half Bridge) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Vgs(th) (Max) @ Id | 5.55V @ 900mA |
| Base Product Number | FF2000UXTR |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 2.4mOhm @ 1000A, 15V |
| Supplier Device Package | AG-XHP2K33 |
| Gate Charge (Qg) (Max) @ Vgs | 5000nC @ 15V |
| Drain to Source Voltage (Vdss) | 3300V (3.3kV) |
| Input Capacitance (Ciss) (Max) @ Vds | 203000pF @ 1800V |
| Current - Continuous Drain (Id) @ 25°C | 925A (Tc) |
