Infineon Technologies BTS72004EPAXUMA1

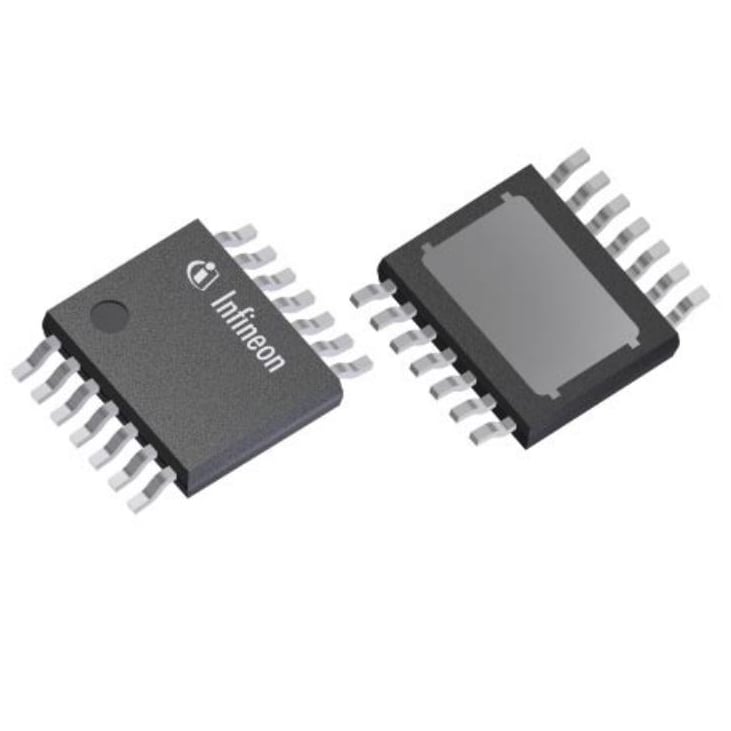

Image shown is a representation only
Manufacturer
Manufacturer No
BTS72004EPAXUMA1
Package
14-TSSOP (0.154", 3.90mm Width) Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
IC 4CH HIGH SIDE SWITCH
Detailed Description
Power Switch/Driver 1:1 N-Channel 1A PG-TSDSO-14
Datasheet
Mfr
Infineon Technologies
Grade
Automotive
Series
PROFET®
Interface
On/Off
Packaging
Tape & Reel (TR); Cut Tape (CT)
Input Type
Non-Inverting
Output Type
N-Channel
Switch Type
General Purpose
Rds On (Typ)
66.5mOhm
Mounting Type
Surface Mount
Qualification
AEC-Q100
Package / Case
14-TSSOP (0.154", 3.90mm Width) Exposed Pad
Voltage - Load
6V ~ 18V
Fault Protection
Over Current, Over Voltage, Short Circuit, UVLO
Number of Outputs
1
Base Product Number
BTS7200
Output Configuration
High Side
Ratio - Input:Output
1:1
Operating Temperature
-40°C ~ 150°C (TJ)
Current - Output (Max)
1A
Supplier Device Package
PG-TSDSO-14
Voltage - Supply (Vcc/Vdd)
Not Required
| Attribute | Value |
|---|---|
| Mfr | Infineon Technologies |
| Grade | Automotive |
| Series | PROFET® |
| Interface | On/Off |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Input Type | Non-Inverting |
| Output Type | N-Channel |
| Switch Type | General Purpose |
| Rds On (Typ) | 66.5mOhm |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q100 |
| Package / Case | 14-TSSOP (0.154", 3.90mm Width) Exposed Pad |
| Voltage - Load | 6V ~ 18V |
| Fault Protection | Over Current, Over Voltage, Short Circuit, UVLO |
| Number of Outputs | 1 |
| Base Product Number | BTS7200 |
| Output Configuration | High Side |
| Ratio - Input:Output | 1:1 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Current - Output (Max) | 1A |
| Supplier Device Package | PG-TSDSO-14 |
| Voltage - Supply (Vcc/Vdd) | Not Required |
