Step1: Product

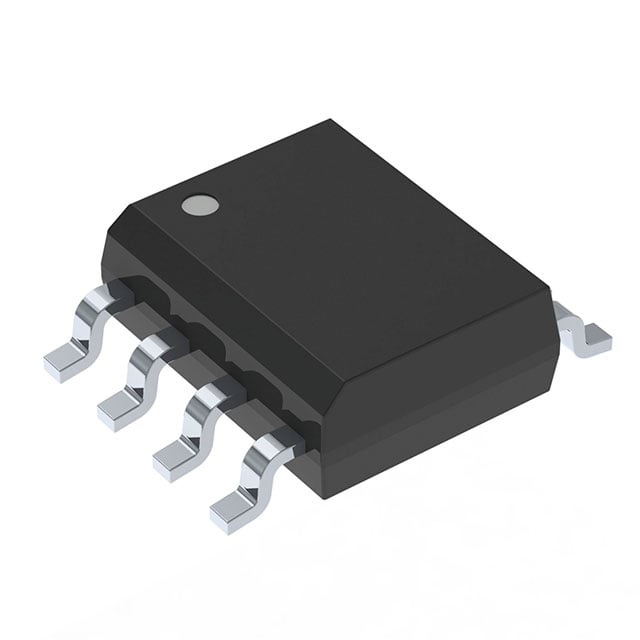

Infineon Technologies BSP762TXUMA1
Image shown is a representation only
Manufacturer
Manufacturer No
BSP762TXUMA1
Quantity
716
Availability
In Stock
Package
8-SOIC (0.154", 3.90mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
IC PWR SWITCH N-CHAN 1:1 PDSO-8
Detailed Description
Power Switch/Driver 1:1 N-Channel 2A PG-DSO-8-6
Datasheet
Mfr
Infineon Technologies
Series
miniPROFET®
Interface
On/Off
Packaging
Tape & Reel (TR); Cut Tape (CT)
Input Type
Non-Inverting
Output Type
N-Channel
Switch Type
General Purpose
Rds On (Typ)
70mOhm
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Voltage - Load
5V ~ 34V
Fault Protection
Current Limiting (Fixed), Over Temperature, Over Voltage
Number of Outputs
1
Base Product Number
BSP762
Output Configuration
High Side
Ratio - Input:Output
1:1
Operating Temperature
-40°C ~ 150°C (TJ)
Current - Output (Max)
2A
Supplier Device Package
PG-DSO-8-6
Voltage - Supply (Vcc/Vdd)
Not Required
| Attribute | Value |
|---|---|
| Mfr | Infineon Technologies |
| Series | miniPROFET® |
| Interface | On/Off |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Input Type | Non-Inverting |
| Output Type | N-Channel |
| Switch Type | General Purpose |
| Rds On (Typ) | 70mOhm |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Voltage - Load | 5V ~ 34V |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Number of Outputs | 1 |
| Base Product Number | BSP762 |
| Output Configuration | High Side |
| Ratio - Input:Output | 1:1 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Current - Output (Max) | 2A |
| Supplier Device Package | PG-DSO-8-6 |
| Voltage - Supply (Vcc/Vdd) | Not Required |
