Step1: Product
Infineon Technologies BTS500101TADATMA2

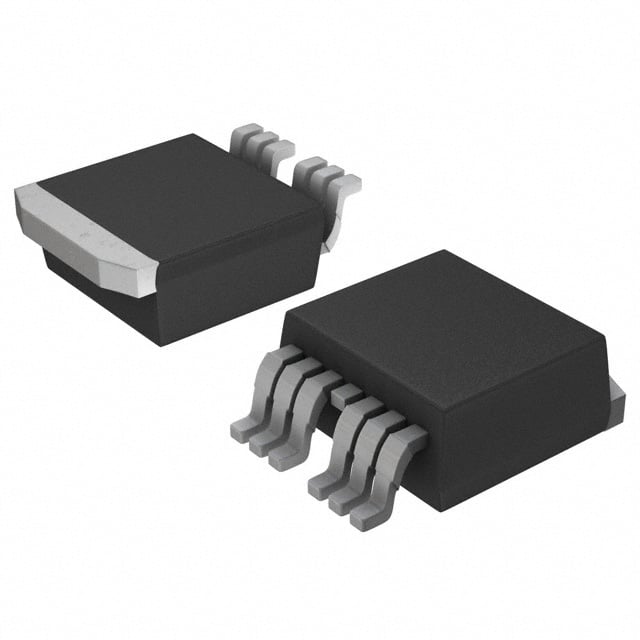

Image shown is a representation only
Manufacturer
Manufacturer No
BTS500101TADATMA2
Quantity
820
Availability
In Stock
Package
TO-263-7, D2PAK (6 Leads + Tab), TO-263CB
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC PWR HIC-PROFET N-CH 1:1 TO263
Detailed Description
Power Switch/Driver 1:1 N-Channel 48A P/PG-TO-263-7-10
DataSheet
Mfr
Infineon Technologies
Grade
Automotive
Series
Reversave™
Interface
On/Off
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Input Type
Non-Inverting
Output Type
N-Channel
Part Status
Active
Switch Type
General Purpose
Rds On (Typ)
1.6mOhm
Mounting Type
Surface Mount
Qualification
AEC-Q100
Package / Case
TO-263-7, D2PAK (6 Leads + Tab), TO-263CB
Voltage - Load
8V ~ 18V
Fault Protection
Over Temperature, Over Voltage, Reverse Battery, Short Circuit
Number of Outputs
1
Base Product Number
BTS50010
Output Configuration
High Side
Ratio - Input:Output
1:1
Operating Temperature
-40°C ~ 150°C (TJ)
Current - Output (Max)
48A
Supplier Device Package
P/PG-TO-263-7-10
Voltage - Supply (Vcc/Vdd)
Not Required
| Attribute | Value |
|---|---|
| Mfr | Infineon Technologies |
| Grade | Automotive |
| Series | Reversave™ |
| Interface | On/Off |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Input Type | Non-Inverting |
| Output Type | N-Channel |
| Part Status | Active |
| Switch Type | General Purpose |
| Rds On (Typ) | 1.6mOhm |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q100 |
| Package / Case | TO-263-7, D2PAK (6 Leads + Tab), TO-263CB |
| Voltage - Load | 8V ~ 18V |
| Fault Protection | Over Temperature, Over Voltage, Reverse Battery, Short Circuit |
| Number of Outputs | 1 |
| Base Product Number | BTS50010 |
| Output Configuration | High Side |
| Ratio - Input:Output | 1:1 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Current - Output (Max) | 48A |
| Supplier Device Package | P/PG-TO-263-7-10 |
| Voltage - Supply (Vcc/Vdd) | Not Required |
