Step1: Product

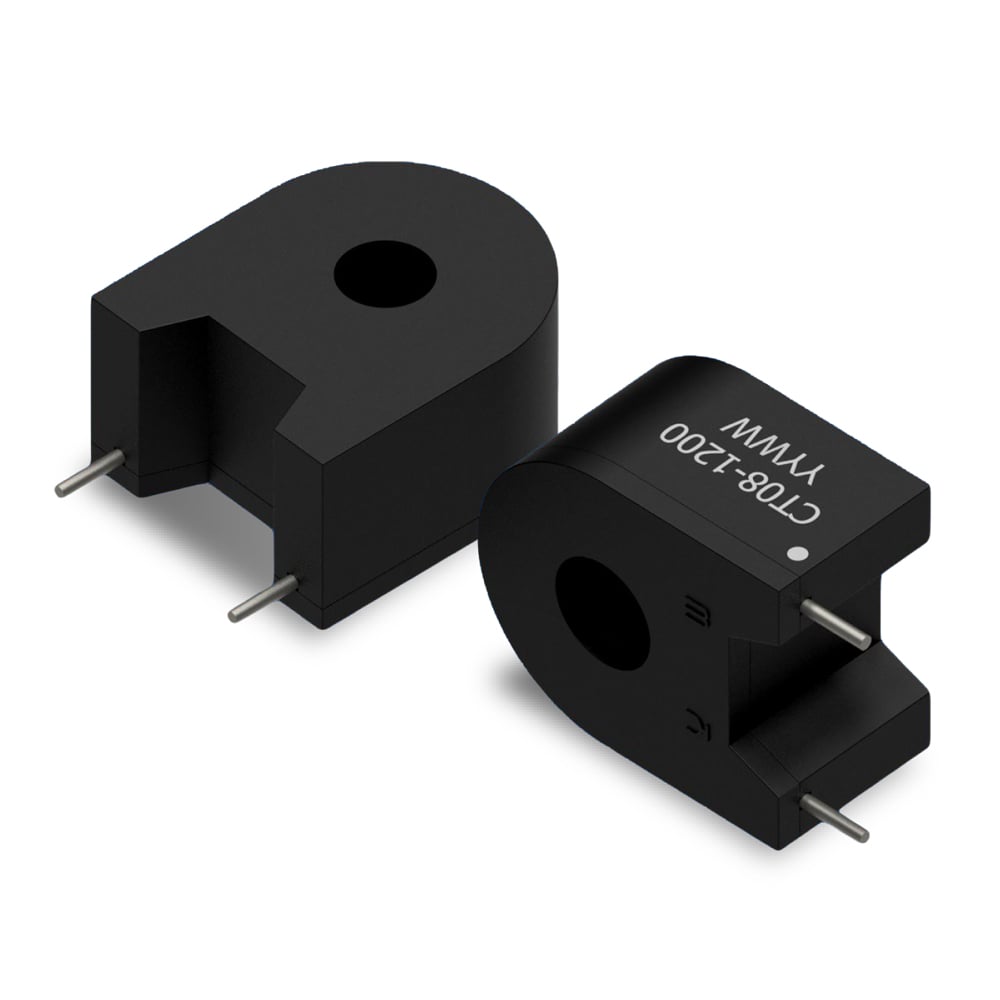

ICE Components, Inc. CT08-1200
Image shown is a representation only
Manufacturer
Manufacturer No
CT08-1200
Packaging
Tray
Description
THT CURRENT SENSE TRANSFORMER
Detailed Description
50 A 1:1200 Current Sense Transformer 3.5kHz Max 40Ohm Secondary Max 10 H Through Hole
DataSheet
Type
Non-Invasive (Solid Core)
Series
CT08
Weight
0.012 lb (5.23 g)
Packaging
Tray
Inductance
10 H
Part Status
Active
Manufacturer
ICE Components, Inc.
Current Ratio
1200:1
Mounting Type
Through Hole
ET (Volt-Time)
3000Vµs
Frequency Range
3.5kHz Max
Size / Dimension
0.673" L x 0.441" W (17.10mm x 11.20mm)
Termination Style
PC Pin
DC Resistance (DCR)
40Ohm Secondary Max
Current Rating (Amps)
50 A
Height - Seated (Max)
0.803" (20.40mm)
Turns Ratio - Primary:Secondary
1:1200
| Attribute | Value |
|---|---|
| Type | Non-Invasive (Solid Core) |
| Series | CT08 |
| Weight | 0.012 lb (5.23 g) |
| Packaging | Tray |
| Inductance | 10 H |
| Part Status | Active |
| Manufacturer | ICE Components, Inc. |
| Current Ratio | 1200:1 |
| Mounting Type | Through Hole |
| ET (Volt-Time) | 3000Vµs |
| Frequency Range | 3.5kHz Max |
| Size / Dimension | 0.673" L x 0.441" W (17.10mm x 11.20mm) |
| Termination Style | PC Pin |
| DC Resistance (DCR) | 40Ohm Secondary Max |
| Current Rating (Amps) | 50 A |
| Height - Seated (Max) | 0.803" (20.40mm) |
| Turns Ratio - Primary:Secondary | 1:1200 |
