Step1: Product

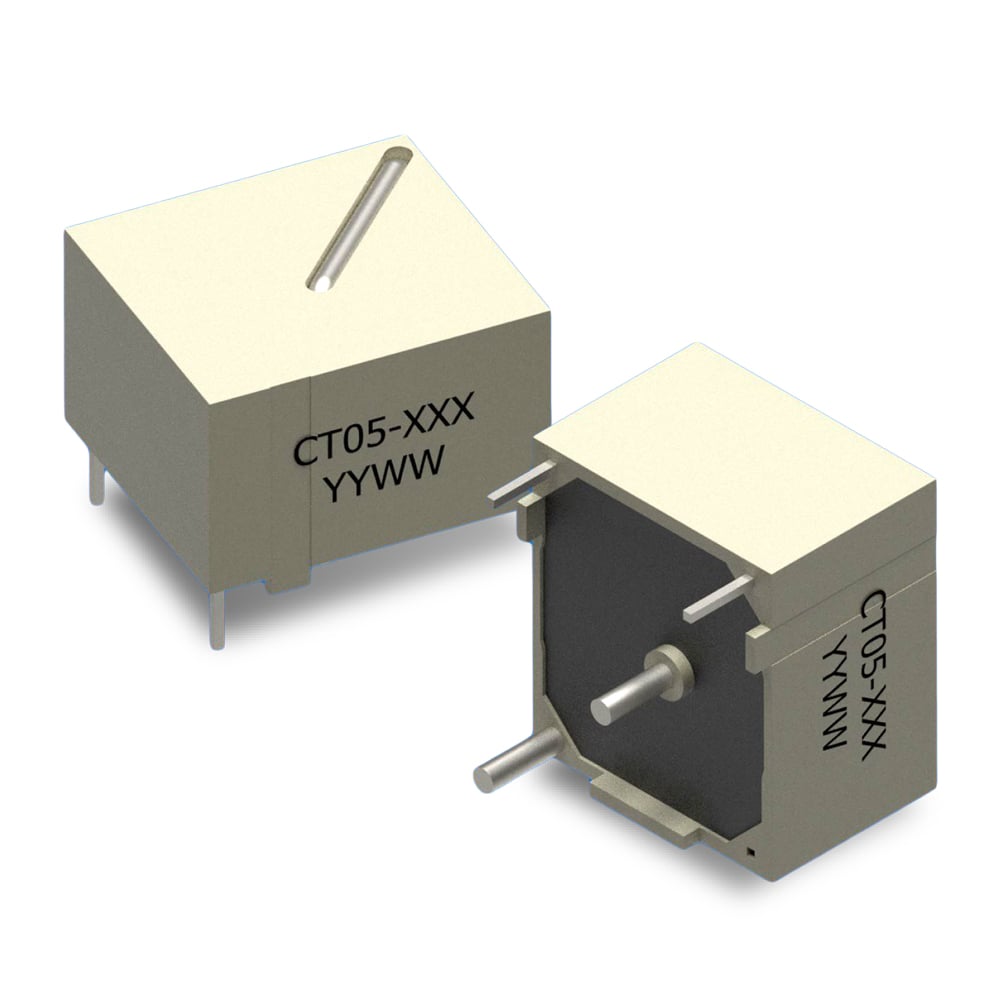

ICE Components, Inc. CT05-100
Image shown is a representation only
Manufacturer
Manufacturer No
CT05-100
Packaging
Tray
Description
THT CURRENT SENSE TRANSFORMER
Detailed Description
25 A 1:100 Current Sense Transformer 200kHz Max 2Ohm Secondary Max 18 mH Through Hole
DataSheet
Type
Invasive
Series
CT05
Weight
0.014 lb (6.28 g)
Packaging
Tray
Inductance
18 mH
Part Status
Active
Manufacturer
ICE Components, Inc.
Current Ratio
100:1
Mounting Type
Through Hole
ET (Volt-Time)
350Vµs
Frequency Range
200kHz Max
Size / Dimension
0.693" L x 0.602" W (17.60mm x 15.30mm)
Termination Style
PC Pin
DC Resistance (DCR)
2Ohm Secondary Max
Current Rating (Amps)
25 A
Height - Seated (Max)
0.472" (12.00mm)
Turns Ratio - Primary:Secondary
1:100
| Attribute | Value |
|---|---|
| Type | Invasive |
| Series | CT05 |
| Weight | 0.014 lb (6.28 g) |
| Packaging | Tray |
| Inductance | 18 mH |
| Part Status | Active |
| Manufacturer | ICE Components, Inc. |
| Current Ratio | 100:1 |
| Mounting Type | Through Hole |
| ET (Volt-Time) | 350Vµs |
| Frequency Range | 200kHz Max |
| Size / Dimension | 0.693" L x 0.602" W (17.60mm x 15.30mm) |
| Termination Style | PC Pin |
| DC Resistance (DCR) | 2Ohm Secondary Max |
| Current Rating (Amps) | 25 A |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Turns Ratio - Primary:Secondary | 1:100 |
