Step1: Product

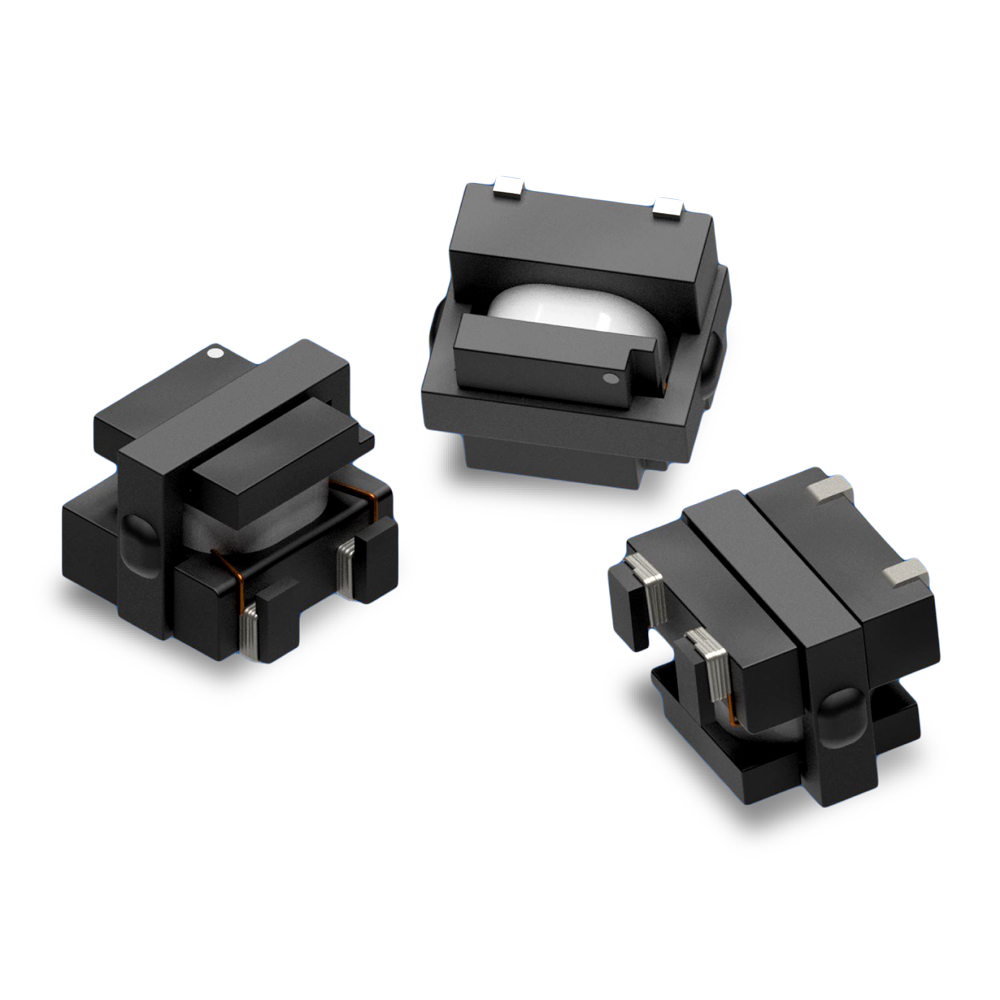

ICE Components, Inc. CT02-100
Image shown is a representation only
Manufacturer
Manufacturer No
CT02-100
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
SMT CURRENT SENSE TRANSFORMER
Detailed Description
18 A 1:100 Current Sense Transformer 1.5MHz Max 4.8Ohm 1.8 mH Surface Mount
DataSheet
Type
Non-Invasive (Solid Core)
Series
CT02
Weight
0.009 oz (0.26 g)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Inductance
1.8 mH
Part Status
Active
Manufacturer
ICE Components, Inc.
Current Ratio
100:1
Mounting Type
Surface Mount
ET (Volt-Time)
150VµS
Frequency Range
1.5MHz Max
Size / Dimension
0.256" L x 0.236" W (6.50mm x 6.00mm)
Termination Style
J Lead
DC Resistance (DCR)
4.8Ohm
Current Rating (Amps)
18 A
Height - Seated (Max)
0.181" (4.60mm)
Turns Ratio - Primary:Secondary
1:100
| Attribute | Value |
|---|---|
| Type | Non-Invasive (Solid Core) |
| Series | CT02 |
| Weight | 0.009 oz (0.26 g) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Inductance | 1.8 mH |
| Part Status | Active |
| Manufacturer | ICE Components, Inc. |
| Current Ratio | 100:1 |
| Mounting Type | Surface Mount |
| ET (Volt-Time) | 150VµS |
| Frequency Range | 1.5MHz Max |
| Size / Dimension | 0.256" L x 0.236" W (6.50mm x 6.00mm) |
| Termination Style | J Lead |
| DC Resistance (DCR) | 4.8Ohm |
| Current Rating (Amps) | 18 A |
| Height - Seated (Max) | 0.181" (4.60mm) |
| Turns Ratio - Primary:Secondary | 1:100 |
