Step1: Product

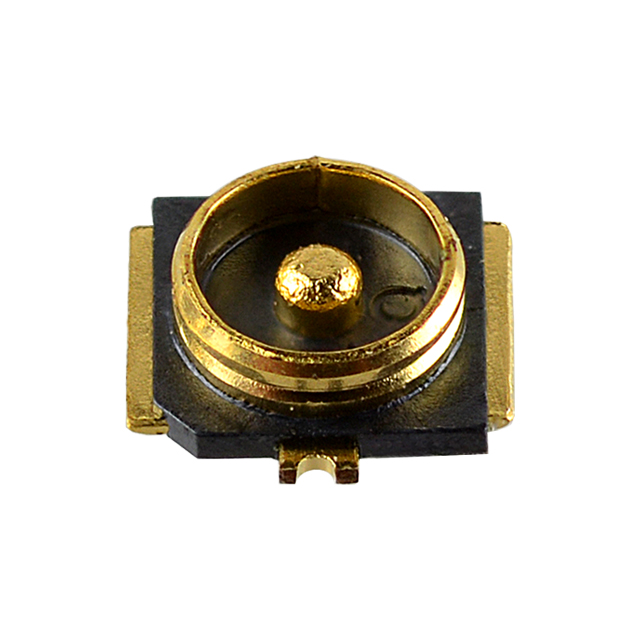

I-PEX 20449-001E-01
Image shown is a representation only
Manufacturer
Manufacturer No
20449-001E-01
Packaging
Tape & Reel (TR)
Description
MHF 4 RECE
Detailed Description
I-PEX MHF4 Connector Receptacle, Male Pin 50 Ohms Surface Mount Solder
DataSheet
Mfr
I-PEX
Series
MHF® 4
Impedance
50 Ohms
Packaging
Tape & Reel (TR)
Body Finish
Gold
Part Status
Not For New Designs
Body Material
Phosphor Bronze
Housing Color
Gold
Mating Cycles
30
Mounting Type
Surface Mount
Connector Type
Receptacle, Male Pin
Fastening Type
Snap-On
Voltage Rating
60 V
Connector Style
I-PEX MHF4
Frequency - Max
9 GHz
Number of Ports
1
Shield Termination
Solder
Contact Termination
Solder
Dielectric Material
Liquid Crystal Polymer (LCP)
Operating Temperature
-40°C ~ 90°C
Center Contact Plating
Gold
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | I-PEX |
| Series | MHF® 4 |
| Impedance | 50 Ohms |
| Packaging | Tape & Reel (TR) |
| Body Finish | Gold |
| Part Status | Not For New Designs |
| Body Material | Phosphor Bronze |
| Housing Color | Gold |
| Mating Cycles | 30 |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle, Male Pin |
| Fastening Type | Snap-On |
| Voltage Rating | 60 V |
| Connector Style | I-PEX MHF4 |
| Frequency - Max | 9 GHz |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Operating Temperature | -40°C ~ 90°C |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
