Step1: Product
I-PEX 20860-001E-01

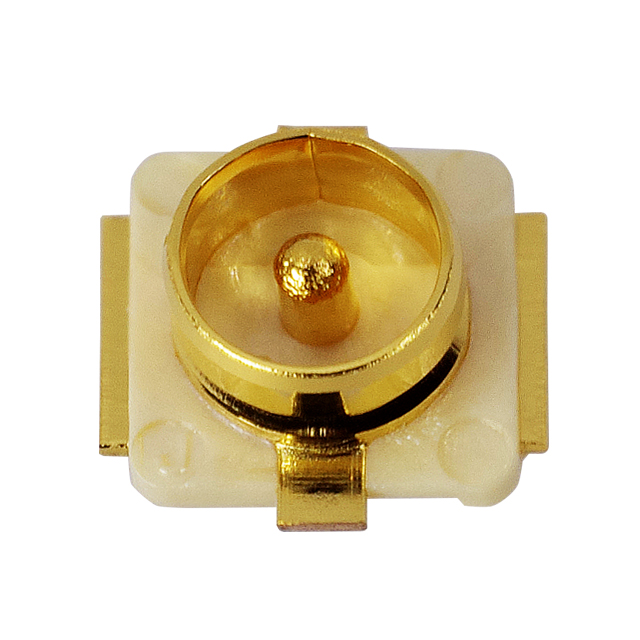

Image shown is a representation only
Manufacturer
Manufacturer No
20860-001E-01
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MHF-TI RECEPTACLE
Detailed Description
I-PEX MHF-TI Connector Receptacle, Female Socket 50 Ohms Surface Mount Solder
DataSheet
Mfr
I-PEX
Series
MHF®-TI
Impedance
50 Ohms
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Housing Color
Black
Mating Cycles
30
Mounting Type
Surface Mount
Connector Type
Receptacle, Female Socket
Fastening Type
Snap-On
Connector Style
I-PEX MHF-TI
Frequency - Max
6 GHz
Number of Ports
1
Shield Termination
Solder
Contact Termination
Solder
Dielectric Material
Liquid Crystal Polymer (LCP)
Operating Temperature
-40°C ~ 85°C
Center Contact Plating
Tin
Center Contact Material
Corson Alloy
| Attribute | Value |
|---|---|
| Mfr | I-PEX |
| Series | MHF®-TI |
| Impedance | 50 Ohms |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Housing Color | Black |
| Mating Cycles | 30 |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle, Female Socket |
| Fastening Type | Snap-On |
| Connector Style | I-PEX MHF-TI |
| Frequency - Max | 6 GHz |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Operating Temperature | -40°C ~ 85°C |
| Center Contact Plating | Tin |
| Center Contact Material | Corson Alloy |
