Step1: Product

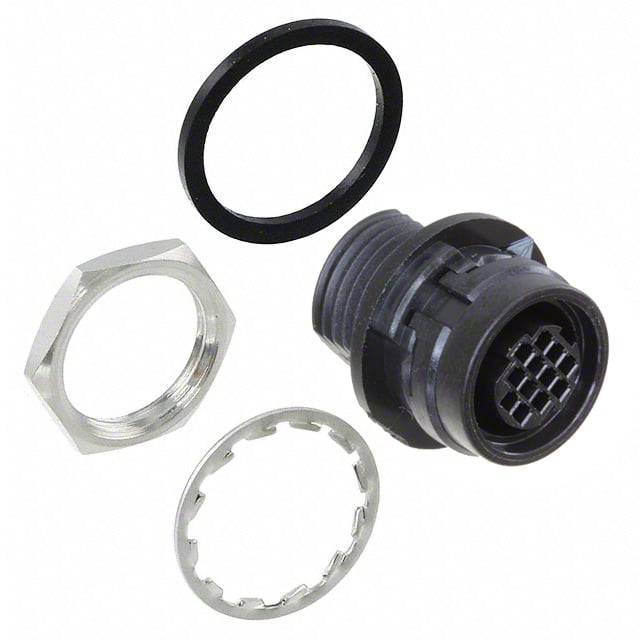

Hirose Electric Co Ltd HR30-8R-12SC(31)
Image shown is a representation only
Manufacturer
Manufacturer No
HR30-8R-12SC(31)
Quantity
25
Availability
In Stock
Packaging
Tray
Description
CONN RCPT HSG FMALE 12POS PNL MT
Detailed Description
12 Position Circular Connector Receptacle Housing Panel Mount
DataSheet
Note
Contacts Sold Separately
Type
For Female Sockets
Series
HR30
Includes
4 pcs - 1 Housing, 1 Gasket, 1 Lockwasher, 1 Nut
Packaging
Tray
Shielding
Unshielded
Orientation
Keyed
Part Status
Active
Contact Type
Crimp
Manufacturer
Hirose Electric Co Ltd
Contact Shape
Square
Housing Color
Black
Mounting Type
Panel Mount
Connector Type
Receptacle Housing
Fastening Type
Push-Pull
Shell Material
Polyphenylene Sulfide (PPS)
Insert Material
Polyphenylene Sulfide (PPS)
Mounting Feature
Bulkhead - Rear Side Nut
Ingress Protection
IP67/IP68 - Dust Tight, Waterproof
Base Product Number
HR30
Number of Positions
12
Shell Size - Insert
8
Operating Temperature
-25°C ~ 85°C
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Note | Contacts Sold Separately |
| Type | For Female Sockets |
| Series | HR30 |
| Includes | 4 pcs - 1 Housing, 1 Gasket, 1 Lockwasher, 1 Nut |
| Packaging | Tray |
| Shielding | Unshielded |
| Orientation | Keyed |
| Part Status | Active |
| Contact Type | Crimp |
| Manufacturer | Hirose Electric Co Ltd |
| Contact Shape | Square |
| Housing Color | Black |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle Housing |
| Fastening Type | Push-Pull |
| Shell Material | Polyphenylene Sulfide (PPS) |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Base Product Number | HR30 |
| Number of Positions | 12 |
| Shell Size - Insert | 8 |
| Operating Temperature | -25°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
