Step1: Product
Hirose Electric Co Ltd HR30-7J-12P(71)

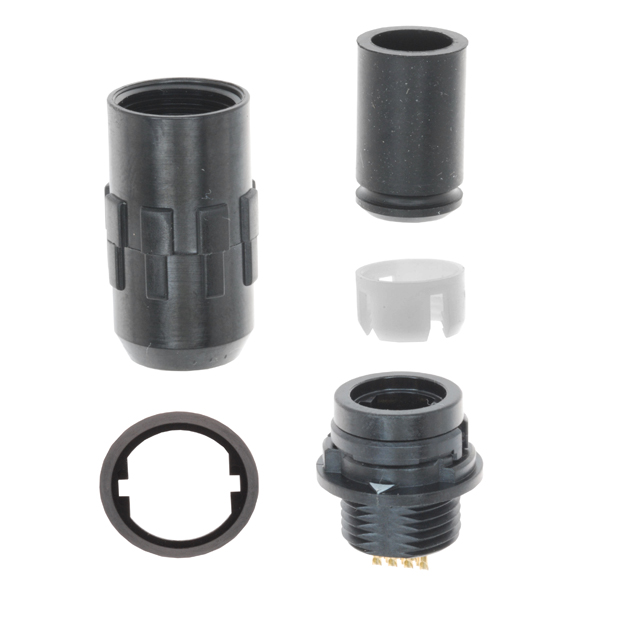

Image shown is a representation only
Manufacturer
Manufacturer No
HR30-7J-12P(71)
Quantity
41
Availability
In Stock
Packaging
Tray
Description
CONN JACK MALE 12P GOLD SLDR CUP
Detailed Description
12 (Power) Position Circular Connector Jack, Male Pins Solder Cup
DataSheet
Mfr
Hirose Electric Co Ltd
Color
Black
Series
HR30
Features
Backshell, Strain Relief
Packaging
Tray
Orientation
Keyed
Part Status
Active
Termination
Solder Cup
Applications
Industrial, Marine, Medical
Cable Opening
0.244" ~ 0.276" (6.20mm ~ 7.00mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Jack, Male Pins
Fastening Type
Push-Pull
Shell Material
Polyphenylene Sulfide (PPS)
Voltage Rating
30VAC, 42VDC
Insert Material
Polyphenylene Sulfide (PPS)
Contact Material
Copper Alloy
Primary Material
Plastic
Ingress Protection
IP67/IP68 - Dust Tight, Waterproof
Base Product Number
HR30
Number of Positions
12 (Power)
Shell Size - Insert
7
Current Rating (Amps)
2A
Operating Temperature
-25°C ~ 85°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Polyphenylene Sulfide (PPS)
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
8.00µin (0.203µm)
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Color | Black |
| Series | HR30 |
| Features | Backshell, Strain Relief |
| Packaging | Tray |
| Orientation | Keyed |
| Part Status | Active |
| Termination | Solder Cup |
| Applications | Industrial, Marine, Medical |
| Cable Opening | 0.244" ~ 0.276" (6.20mm ~ 7.00mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Jack, Male Pins |
| Fastening Type | Push-Pull |
| Shell Material | Polyphenylene Sulfide (PPS) |
| Voltage Rating | 30VAC, 42VDC |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Contact Material | Copper Alloy |
| Primary Material | Plastic |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Base Product Number | HR30 |
| Number of Positions | 12 (Power) |
| Shell Size - Insert | 7 |
| Current Rating (Amps) | 2A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Polyphenylene Sulfide (PPS) |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
