Step1: Product
Hirose Electric Co Ltd HR30-6PA-6P(71)

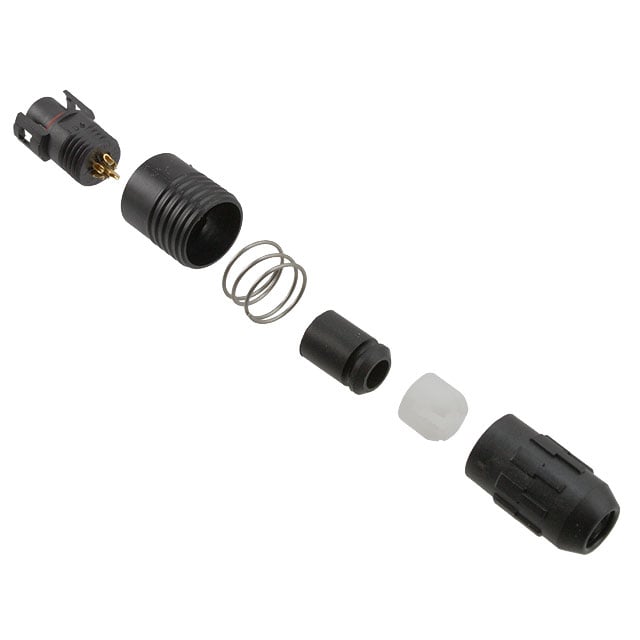

Image shown is a representation only
Manufacturer
Manufacturer No
HR30-6PA-6P(71)
Quantity
35
Availability
In Stock
Packaging
Tray
Description
CONN PLUG MALE 6P GOLD SLDR CUP
Detailed Description
6 (Power) Position Circular Connector Plug, Male Pins Solder Cup
Datasheet
Mfr
Hirose Electric Co Ltd
Color
Black
Series
HR30
Features
Backshell, Strain Relief
Packaging
Tray
Orientation
Keyed
Termination
Solder Cup
Applications
Industrial, Marine, Medical
Cable Opening
0.138" ~ 0.169" (3.50mm ~ 4.30mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pins
Fastening Type
Push-Pull
Shell Material
Polybutylene Terephthalate (PBT)
Voltage Rating
100VAC, 140VDC
Insert Material
Polyphenylene Sulfide (PPS)
Contact Material
Brass
Primary Material
Plastic
Ingress Protection
IP67/IP68 - Dust Tight, Waterproof
Base Product Number
HR30
Number of Positions
6 (Power)
Shell Size - Insert
6
Current Rating (Amps)
2A
Operating Temperature
-25°C ~ 85°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Polybutylene Terephthalate (PBT)
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
8.00µin (0.203µm)
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Color | Black |
| Series | HR30 |
| Features | Backshell, Strain Relief |
| Packaging | Tray |
| Orientation | Keyed |
| Termination | Solder Cup |
| Applications | Industrial, Marine, Medical |
| Cable Opening | 0.138" ~ 0.169" (3.50mm ~ 4.30mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins |
| Fastening Type | Push-Pull |
| Shell Material | Polybutylene Terephthalate (PBT) |
| Voltage Rating | 100VAC, 140VDC |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Contact Material | Brass |
| Primary Material | Plastic |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Base Product Number | HR30 |
| Number of Positions | 6 (Power) |
| Shell Size - Insert | 6 |
| Current Rating (Amps) | 2A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
