Step1: Product

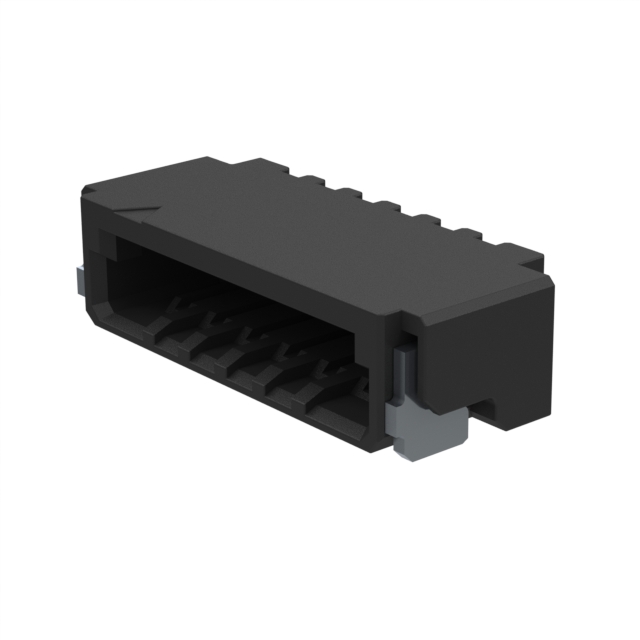

Hirose Electric Co Ltd DF53-6S-0.6H
Image shown is a representation only
Manufacturer
Manufacturer No
DF53-6S-0.6H
Quantity
5000
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
Interconnect Rectangular
Detailed Description
Connector Header Surface Mount, Right Angle 6 position 0.024" (0.60mm)
DataSheet
Mfr
Hirose Electric Co Ltd
Style
Board to Cable/Wire
Series
DF53
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Rectangular
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.024" (0.60mm)
Voltage Rating
50VAC/DC
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.057" (1.45mm)
Insulation Material
Polyamide (PA), Nylon
Number of Positions
6
Contact Finish - Post
Tin
Current Rating (Amps)
0.7A
Operating Temperature
-55°C ~ 85°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Style | Board to Cable/Wire |
| Series | DF53 |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Rectangular |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.024" (0.60mm) |
| Voltage Rating | 50VAC/DC |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.057" (1.45mm) |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 6 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 0.7A |
| Operating Temperature | -55°C ~ 85°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
