Step1: Product

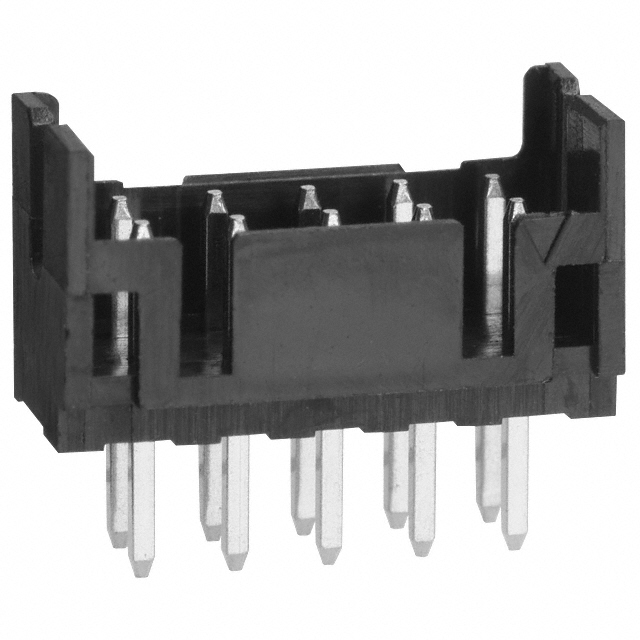

Hirose Electric Co Ltd DF11-10DP-2DSA(24)
Image shown is a representation only
Manufacturer
Manufacturer No
DF11-10DP-2DSA(24)
Quantity
5519
Availability
In Stock
Packaging
Tube
Description
CONN HEADER VERT 10POS 2MM
Detailed Description
Connector Header Through Hole 10 position 0.079" (2.00mm)
DataSheet
Mfr
Hirose Electric Co Ltd
Style
Board to Board or Cable
Series
DF11
Packaging
Tube
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Detent Lock
Number of Rows
2
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
250V
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.260" (6.60mm)
Base Product Number
DF11
Insulation Material
Polyamide (PA), Nylon
Number of Positions
10
Row Spacing - Mating
0.079" (2.00mm)
Contact Finish - Post
Tin
Contact Length - Post
0.118" (3.00mm)
Current Rating (Amps)
2A
Operating Temperature
-30°C ~ 85°C
Mated Stacking Heights
7.55, 7.8mm, 8.9mm
Overall Contact Length
0.299" (7.60mm)
Contact Finish - Mating
Tin
Contact Length - Mating
0.118" (3.00mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
39.4µin (1.00µm)
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Style | Board to Board or Cable |
| Series | DF11 |
| Packaging | Tube |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Detent Lock |
| Number of Rows | 2 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 250V |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.260" (6.60mm) |
| Base Product Number | DF11 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 10 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.118" (3.00mm) |
| Current Rating (Amps) | 2A |
| Operating Temperature | -30°C ~ 85°C |
| Mated Stacking Heights | 7.55, 7.8mm, 8.9mm |
| Overall Contact Length | 0.299" (7.60mm) |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.118" (3.00mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
