Step1: Product

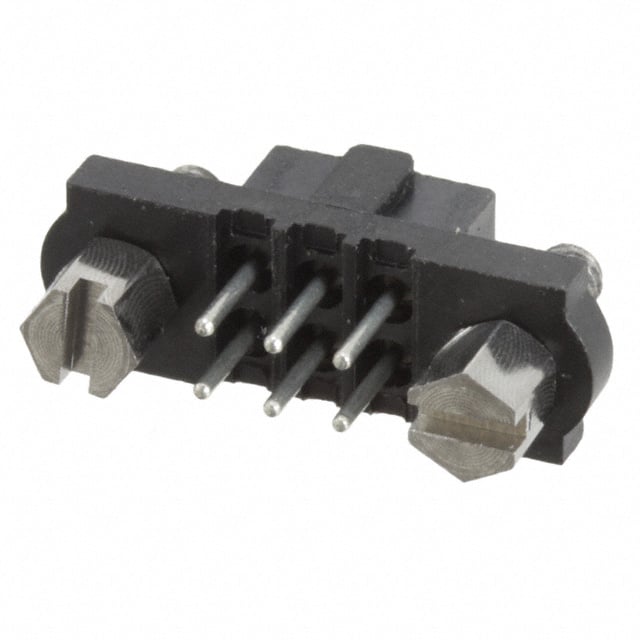

Harwin Inc. M80-4000642
Image shown is a representation only
Manufacturer
Manufacturer No
M80-4000642
Quantity
10
Availability
In Stock
Packaging
Tube
Description
CONN RCPT 6POS 0.079 GOLD PCB
Detailed Description
6 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Datasheet
Mfr
Harwin Inc.
Style
Board to Board or Cable
Series
Datamate J-Tek
Features
Jackscrews, Mating Flange, Mounting Flange, Polarizing Key
Packaging
Tube
Termination
Solder
Applications
Automotive, General Purpose, Military
Contact Type
Female Socket
Contact Shape
Circular
Mounting Type
Through Hole
Connector Type
Receptacle
Fastening Type
Screw Lock
Number of Rows
2
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
120V
Contact Material
Beryllium Copper
Insulation Color
Black
Insulation Height
0.205" (5.20mm)
Base Product Number
M80-400
Insulation Material
Polyphenylene Sulfide (PPS), Glass Filled
Number of Positions
6
Row Spacing - Mating
0.079" (2.00mm)
Contact Finish - Post
Tin
Contact Length - Post
0.118" (3.00mm)
Operating Temperature
-55°C ~ 125°C
Mated Stacking Heights
7.3mm, 7.55mm
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
137.8µin (3.50µm)
Contact Finish Thickness - Mating
12.0µin (0.30µm)
| Attribute | Value |
|---|---|
| Mfr | Harwin Inc. |
| Style | Board to Board or Cable |
| Series | Datamate J-Tek |
| Features | Jackscrews, Mating Flange, Mounting Flange, Polarizing Key |
| Packaging | Tube |
| Termination | Solder |
| Applications | Automotive, General Purpose, Military |
| Contact Type | Female Socket |
| Contact Shape | Circular |
| Mounting Type | Through Hole |
| Connector Type | Receptacle |
| Fastening Type | Screw Lock |
| Number of Rows | 2 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 120V |
| Contact Material | Beryllium Copper |
| Insulation Color | Black |
| Insulation Height | 0.205" (5.20mm) |
| Base Product Number | M80-400 |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Number of Positions | 6 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.118" (3.00mm) |
| Operating Temperature | -55°C ~ 125°C |
| Mated Stacking Heights | 7.3mm, 7.55mm |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 137.8µin (3.50µm) |
| Contact Finish Thickness - Mating | 12.0µin (0.30µm) |
