Step1: Product
Harwin Inc. M55-6012042R

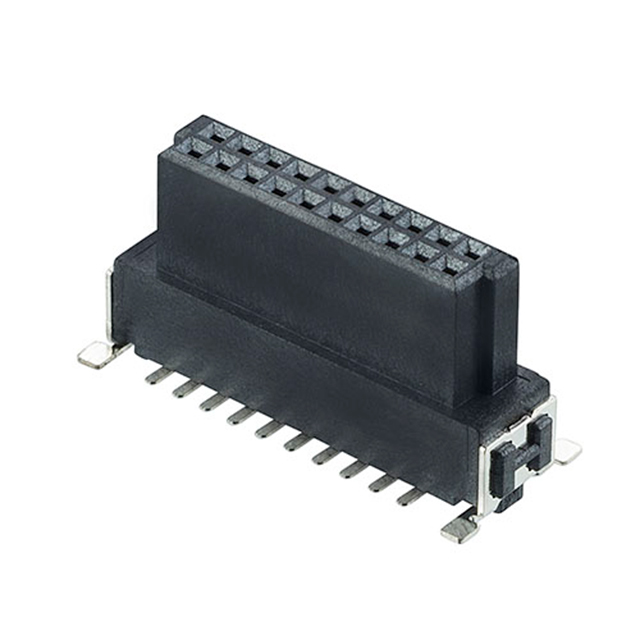

Image shown is a representation only
Manufacturer
Manufacturer No
M55-6012042R
Quantity
30
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN RCPT 20POS 0.05 GOLD SMD
Detailed Description
20 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
DataSheet
Mfr
Harwin Inc.
Style
Board to Board
Series
Kontrol
Features
Board Guide, Pick and Place, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Termination
Solder
Applications
Automotive, General Purpose, Industrial
Contact Type
Female Socket
Contact Shape
Rectangular
Mounting Type
Surface Mount
Connector Type
Receptacle
Fastening Type
Latch Holder
Number of Rows
2
Pitch - Mating
0.050" (1.27mm)
Voltage Rating
100VAC
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.356" (9.05mm)
Base Product Number
M55-601
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
20
Row Spacing - Mating
0.050" (1.27mm)
Contact Finish - Post
Tin
Current Rating (Amps)
1.2A
Operating Temperature
-55°C ~ 125°C
Mated Stacking Heights
10.8mm, 12.3mm, 13.9mm
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
100.0µin (2.54µm)
Contact Finish Thickness - Mating
1.00µin (0.025µm)
| Attribute | Value |
|---|---|
| Mfr | Harwin Inc. |
| Style | Board to Board |
| Series | Kontrol |
| Features | Board Guide, Pick and Place, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact Type | Female Socket |
| Contact Shape | Rectangular |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Pitch - Mating | 0.050" (1.27mm) |
| Voltage Rating | 100VAC |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.356" (9.05mm) |
| Base Product Number | M55-601 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 20 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 1.2A |
| Operating Temperature | -55°C ~ 125°C |
| Mated Stacking Heights | 10.8mm, 12.3mm, 13.9mm |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 1.00µin (0.025µm) |
