Harwin Inc. M22-6361042

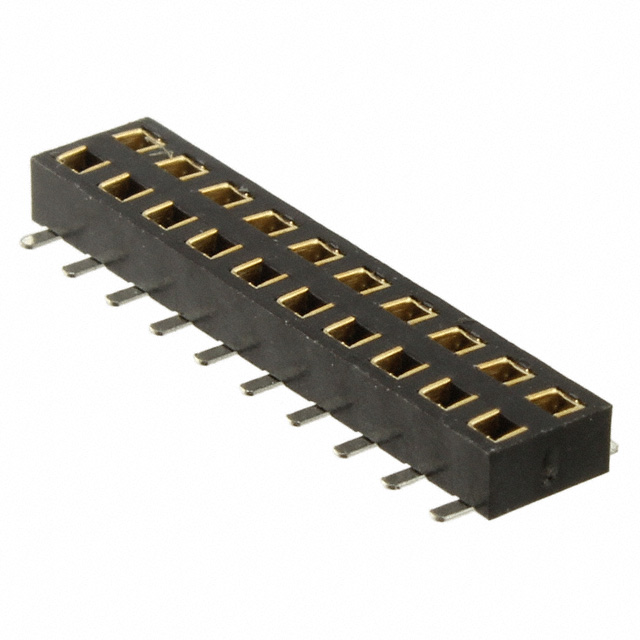

Image shown is a representation only
Manufacturer
Manufacturer No
M22-6361042
Quantity
5
Availability
In Stock
Packaging
Tube
Description
CONN RCPT 20POS 0.079 GOLD SMD
Detailed Description
20 Position Receptacle, Bottom or Top Entry Connector 0.079" (2.00mm) Surface Mount Gold
DataSheet
Mfr
Harwin Inc.
Style
Board to Board or Cable
Series
M22
Features
Board Guide
Packaging
Tube
Part Status
Active
Termination
Solder
Applications
General Purpose, Industrial, Telecommunications
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Receptacle, Bottom or Top Entry
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.079" (2.00mm)
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.079" (2.00mm)
Base Product Number
M22-636
Insulation Material
Polyamide (PA9T), Nylon 9T
Number of Positions
20
Row Spacing - Mating
0.079" (2.00mm)
Contact Finish - Post
Tin
Current Rating (Amps)
2A
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
3.6mm, 4.35mm, 4.6mm
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | Harwin Inc. |
| Style | Board to Board or Cable |
| Series | M22 |
| Features | Board Guide |
| Packaging | Tube |
| Part Status | Active |
| Termination | Solder |
| Applications | General Purpose, Industrial, Telecommunications |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle, Bottom or Top Entry |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.079" (2.00mm) |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.079" (2.00mm) |
| Base Product Number | M22-636 |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Number of Positions | 20 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 2A |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | 3.6mm, 4.35mm, 4.6mm |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | Flash |
