GE Aerospace GE1211103A1

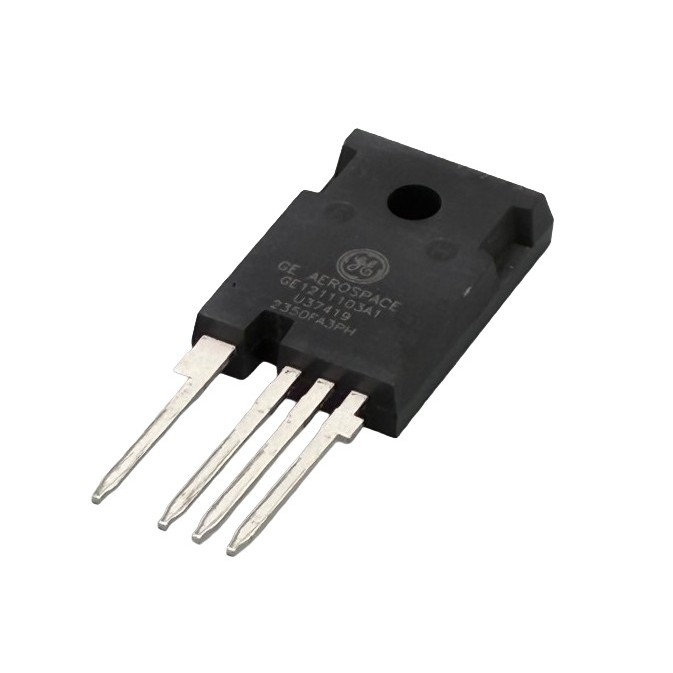

Image shown is a representation only
Manufacturer
Manufacturer No
GE1211103A1
Package
TO-247-4L
Packaging
Retail Package
Description
SiC MOSFET
Detailed Description
N-Channel 1200 V 111A (Ta) 660W (Tc) Through Hole TO-247-4L
DataSheet
Mfr
GE Aerospace
Grade
Automotive
FET Type
N-Channel
Packaging
Retail Package
Vgs (Max)
+23V, -15V
Technology
MOSFET (Metal Oxide)
Part Status
Active
Mounting Type
Through Hole
Qualification
AEC-Q101
Package / Case
TO-247-4L
Vgs(th) (Max) @ Id
3.8V @ 20mA
Operating Temperature
-55°C ~ 200°C (TJ)
Rds On (Max) @ Id, Vgs
20mOhm @ 75A, 20V
Power Dissipation (Max)
660W (Tc)
Supplier Device Package
TO-247-4L
Gate Charge (Qg) (Max) @ Vgs
172 nC @ 900 V
Drain to Source Voltage (Vdss)
1200 V
Input Capacitance (Ciss) (Max) @ Vds
3982 pF @ 500 V
Drive Voltage (Max Rds On, Min Rds On)
20V
Current - Continuous Drain (Id) @ 25°C
111A (Ta)
| Attribute | Value |
|---|---|
| Mfr | GE Aerospace |
| Grade | Automotive |
| FET Type | N-Channel |
| Packaging | Retail Package |
| Vgs (Max) | +23V, -15V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Mounting Type | Through Hole |
| Qualification | AEC-Q101 |
| Package / Case | TO-247-4L |
| Vgs(th) (Max) @ Id | 3.8V @ 20mA |
| Operating Temperature | -55°C ~ 200°C (TJ) |
| Rds On (Max) @ Id, Vgs | 20mOhm @ 75A, 20V |
| Power Dissipation (Max) | 660W (Tc) |
| Supplier Device Package | TO-247-4L |
| Gate Charge (Qg) (Max) @ Vgs | 172 nC @ 900 V |
| Drain to Source Voltage (Vdss) | 1200 V |
| Input Capacitance (Ciss) (Max) @ Vds | 3982 pF @ 500 V |
| Drive Voltage (Max Rds On, Min Rds On) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 111A (Ta) |
