Step1: Product
Excel Cell Electronic Co., Ltd. ESD102LDZ

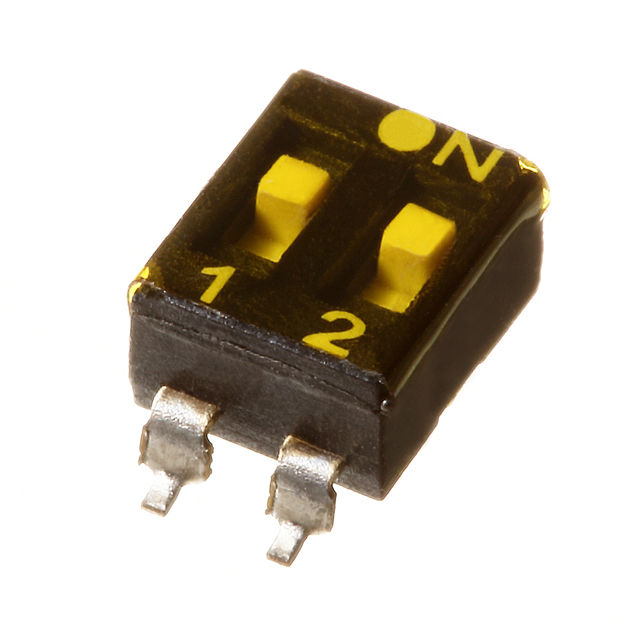

Image shown is a representation only
Manufacturer
Manufacturer No
ESD102LDZ
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
SWITCH DIP SLIDE SPST 25MA 24V
Detailed Description
Dip Switch SPST 2 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Datasheet
Pitch
0.100" (2.54mm), Full
Length
0.198" (5.03mm)
Series
ESD
Circuit
SPST
Washable
Yes
Packaging
Tape & Reel (TR); Cut Tape (CT)
Manufacturer
Excel Cell Electronic Co., Ltd.
Actuator Type
Slide (Standard)
Body Material
Polyamide (PA9T)
Mounting Type
Surface Mount
Actuator Level
Flush, Recessed
Contact Finish
Gold
Voltage Rating
24VDC
Electrical Life
2,000 Cycles
Mechanical Life
2,000 Cycles
Contact Material
Copper Alloy
Termination Style
Gull Wing
Height Above Board
0.146" (3.70mm)
Number of Positions
2
Current Rating (Amps)
25mA
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm), Full |
| Length | 0.198" (5.03mm) |
| Series | ESD |
| Circuit | SPST |
| Washable | Yes |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Manufacturer | Excel Cell Electronic Co., Ltd. |
| Actuator Type | Slide (Standard) |
| Body Material | Polyamide (PA9T) |
| Mounting Type | Surface Mount |
| Actuator Level | Flush, Recessed |
| Contact Finish | Gold |
| Voltage Rating | 24VDC |
| Electrical Life | 2,000 Cycles |
| Mechanical Life | 2,000 Cycles |
| Contact Material | Copper Alloy |
| Termination Style | Gull Wing |
| Height Above Board | 0.146" (3.70mm) |
| Number of Positions | 2 |
| Current Rating (Amps) | 25mA |
| Operating Temperature | -40°C ~ 85°C |
