Step1: Product
Infineon Technologies ESD103B102ELSE6327XTSA1

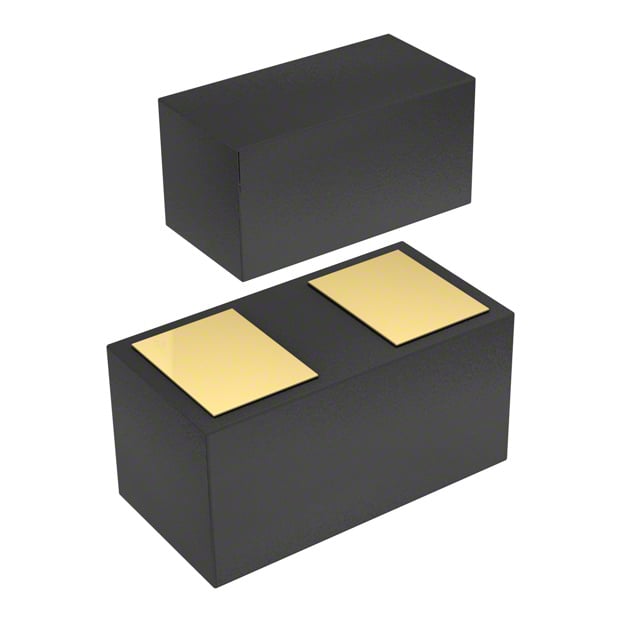

Image shown is a representation only
Manufacturer
Manufacturer No
ESD103B102ELSE6327XTSA1
Quantity
965
Availability
In Stock
Package
0201 (0603 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
TVS DIODE 15VWM 48V PGTSSLP24
Detailed Description
48V (Typ) Clamp 16A (100ns) Ipp Tvs Diode Surface Mount PG-TSSLP-2-4
Datasheet
Mfr
Infineon Technologies
Type
Zener
Packaging
Tape & Reel (TR); Cut Tape (CT)
Applications
RF Antenna
Mounting Type
Surface Mount
Package / Case
0201 (0603 Metric)
Base Product Number
ESD103
Operating Temperature
-55°C ~ 125°C (TJ)
Power Line Protection
No
Bidirectional Channels
1
Capacitance @ Frequency
0.13pF @ 1MHz
Supplier Device Package
PG-TSSLP-2-4
Voltage - Breakdown (Min)
21V (Typ)
Voltage - Clamping (Max) @ Ipp
48V (Typ)
Voltage - Reverse Standoff (Typ)
15V (Max)
Current - Peak Pulse (10/1000µs)
16A (100ns)
| Attribute | Value |
|---|---|
| Mfr | Infineon Technologies |
| Type | Zener |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Applications | RF Antenna |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Base Product Number | ESD103 |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Power Line Protection | No |
| Bidirectional Channels | 1 |
| Capacitance @ Frequency | 0.13pF @ 1MHz |
| Supplier Device Package | PG-TSSLP-2-4 |
| Voltage - Breakdown (Min) | 21V (Typ) |
| Voltage - Clamping (Max) @ Ipp | 48V (Typ) |
| Voltage - Reverse Standoff (Typ) | 15V (Max) |
| Current - Peak Pulse (10/1000µs) | 16A (100ns) |
