Step1: Product
Excel Cell Electronic Co., Ltd. EHS102LD

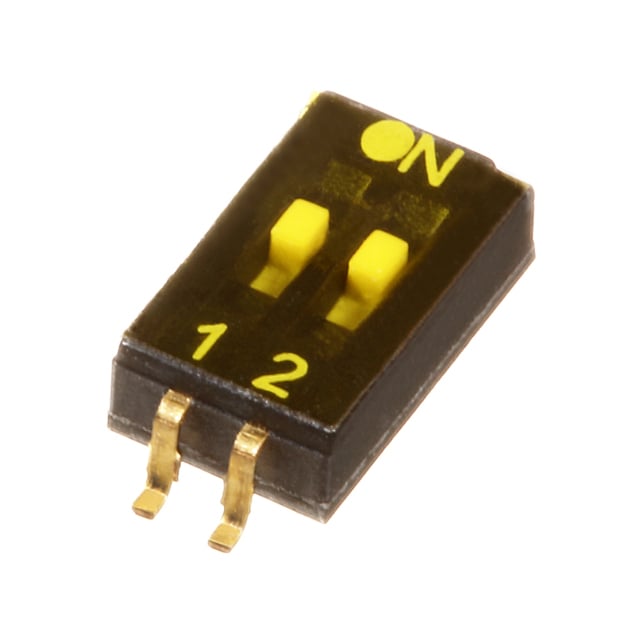

Image shown is a representation only
Manufacturer
Manufacturer No
EHS102LD
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
HALF PITCH, 2P
Detailed Description
Dip Switch SPST 2 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
DataSheet
Pitch
0.050" (1.27mm), Half
Length
0.146" (3.71mm)
Series
EHS
Circuit
SPST
Washable
No
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
Excel Cell Electronic Co., Ltd.
Actuator Type
Slide (Standard)
Body Material
Polyamide (PA9T)
Mounting Type
Surface Mount
Actuator Level
Flush, Recessed
Contact Finish
Gold
Voltage Rating
24VDC
Electrical Life
1,000 Cycles
Mechanical Life
1,000 Cycles
Contact Material
Copper Alloy
Termination Style
Gull Wing
Height Above Board
0.067" (1.70mm)
Number of Positions
2
Current Rating (Amps)
25mA
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Pitch | 0.050" (1.27mm), Half |
| Length | 0.146" (3.71mm) |
| Series | EHS |
| Circuit | SPST |
| Washable | No |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | Excel Cell Electronic Co., Ltd. |
| Actuator Type | Slide (Standard) |
| Body Material | Polyamide (PA9T) |
| Mounting Type | Surface Mount |
| Actuator Level | Flush, Recessed |
| Contact Finish | Gold |
| Voltage Rating | 24VDC |
| Electrical Life | 1,000 Cycles |
| Mechanical Life | 1,000 Cycles |
| Contact Material | Copper Alloy |
| Termination Style | Gull Wing |
| Height Above Board | 0.067" (1.70mm) |
| Number of Positions | 2 |
| Current Rating (Amps) | 25mA |
| Operating Temperature | -40°C ~ 85°C |
