Step1: Product
E-Switch TL9000F120QG

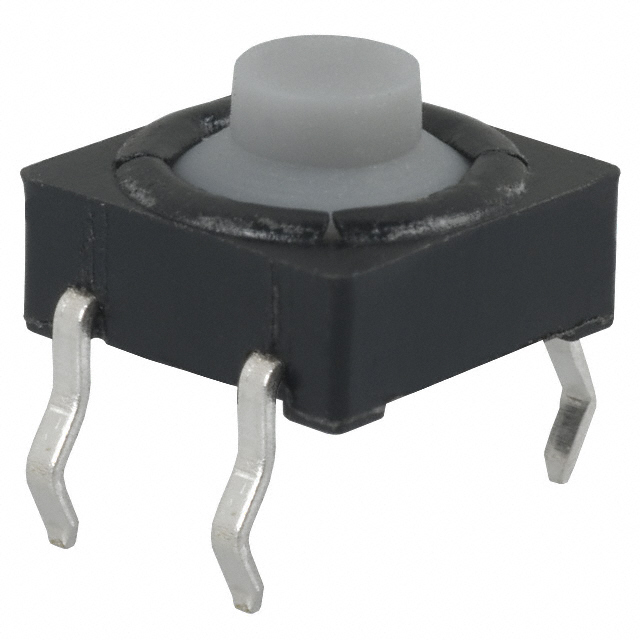

Image shown is a representation only
Manufacturer
Manufacturer No
TL9000F120QG
Packaging
Bulk
Description
SWITCH TACTILE SPST-NO 0.05A 12V
Detailed Description
Tactile Switch SPST-NO Top Actuated Through Hole
DataSheet
Mfr
E-Switch
Series
TL9000
Circuit
SPST-NO
Outline
7.80mm x 7.80mm
Packaging
Bulk
Part Status
Obsolete
Illumination
Non-Illuminated
Actuator Type
Standard
Mounting Type
Through Hole
Switch Travel
1.00mm
Mechanical Life
100,000 Cycles
Operating Force
120gf
Switch Function
Off-Mom
Termination Style
PC Pin
Base Product Number
TL9000
Actuator Orientation
Top Actuated
Operating Temperature
-20°C ~ 70°C
Contact Rating @ Voltage
0.05A @ 12VDC
Actuator Height off PCB, Vertical
5.00mm
| Attribute | Value |
|---|---|
| Mfr | E-Switch |
| Series | TL9000 |
| Circuit | SPST-NO |
| Outline | 7.80mm x 7.80mm |
| Packaging | Bulk |
| Part Status | Obsolete |
| Illumination | Non-Illuminated |
| Actuator Type | Standard |
| Mounting Type | Through Hole |
| Switch Travel | 1.00mm |
| Mechanical Life | 100,000 Cycles |
| Operating Force | 120gf |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Base Product Number | TL9000 |
| Actuator Orientation | Top Actuated |
| Operating Temperature | -20°C ~ 70°C |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Height off PCB, Vertical | 5.00mm |
