Step1: Product
E-Switch TL53HCF160Q

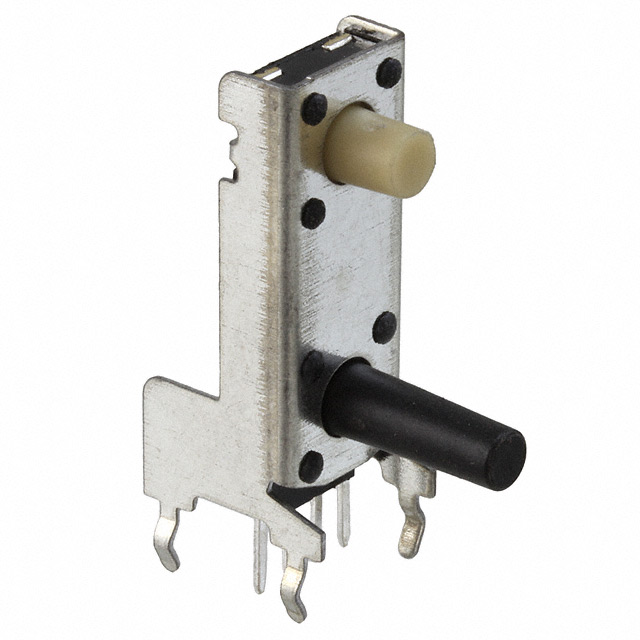

Image shown is a representation only
Manufacturer
Manufacturer No
TL53HCF160Q
Packaging
Tray
Description
SWITCH TACT SPSTX2 0.05A 12V
Detailed Description
Tactile Switch SPST x 2 Side Actuated Through Hole, Right Angle
DataSheet
Mfr
E-Switch
Series
TL53
Circuit
SPST x 2
Outline
8.40mm x 10.50mm
Packaging
Tray
Part Status
Active
Illumination
Non-Illuminated
Actuator Type
Dual
Mounting Type
Through Hole, Right Angle
Switch Travel
0.25mm
Mechanical Life
100,000 Cycles
Operating Force
160gf
Switch Function
Off-Mom
Actuator Material
Acetal
Termination Style
PC Pin
Base Product Number
TL53H
Actuator Orientation
Side Actuated
Operating Temperature
-20°C ~ 70°C
Contact Rating @ Voltage
0.05A @ 12VDC
| Attribute | Value |
|---|---|
| Mfr | E-Switch |
| Series | TL53 |
| Circuit | SPST x 2 |
| Outline | 8.40mm x 10.50mm |
| Packaging | Tray |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Actuator Type | Dual |
| Mounting Type | Through Hole, Right Angle |
| Switch Travel | 0.25mm |
| Mechanical Life | 100,000 Cycles |
| Operating Force | 160gf |
| Switch Function | Off-Mom |
| Actuator Material | Acetal |
| Termination Style | PC Pin |
| Base Product Number | TL53H |
| Actuator Orientation | Side Actuated |
| Operating Temperature | -20°C ~ 70°C |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
