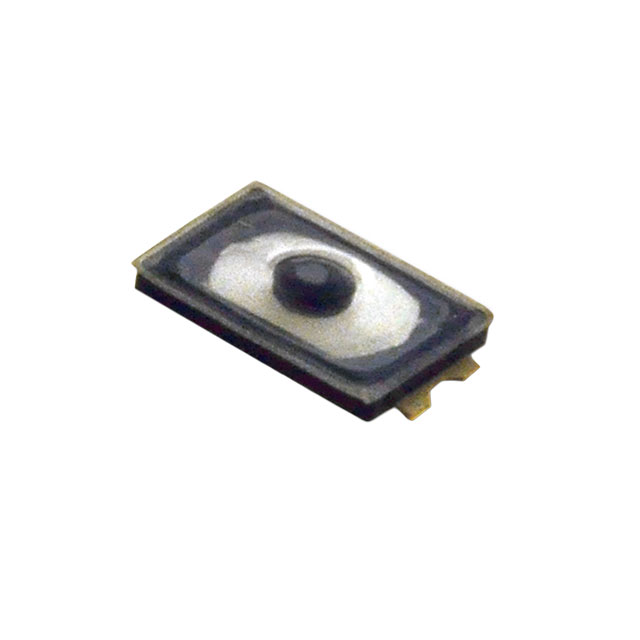

E-Switch TL3780AF330QG
Image shown is a representation only
Manufacturer
Manufacturer No
TL3780AF330QG
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
SWITCH TACTILE SPST-NO 0.05A 12V
Detailed Description
Tactile Switch SPST-NO Top Actuated Surface Mount
DataSheet
Mfr
E-Switch
Series
TL3780
Circuit
SPST-NO
Outline
3.00mm x 2.00mm
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Illumination
Non-Illuminated
Actuator Type
Standard
Mounting Type
Surface Mount
Switch Travel
0.13mm
Mechanical Life
300,000 Cycles
Operating Force
330gf
Switch Function
Off-Mom
Termination Style
Gull Wing
Base Product Number
TL3780
Actuator Orientation
Top Actuated
Operating Temperature
-40°C ~ 85°C
Contact Rating @ Voltage
0.05A @ 12VDC
Actuator Height off PCB, Vertical
0.60mm
| Attribute | Value |
|---|---|
| Mfr | E-Switch |
| Series | TL3780 |
| Circuit | SPST-NO |
| Outline | 3.00mm x 2.00mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Actuator Type | Standard |
| Mounting Type | Surface Mount |
| Switch Travel | 0.13mm |
| Mechanical Life | 300,000 Cycles |
| Operating Force | 330gf |
| Switch Function | Off-Mom |
| Termination Style | Gull Wing |
| Base Product Number | TL3780 |
| Actuator Orientation | Top Actuated |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Height off PCB, Vertical | 0.60mm |
