Step1: Product

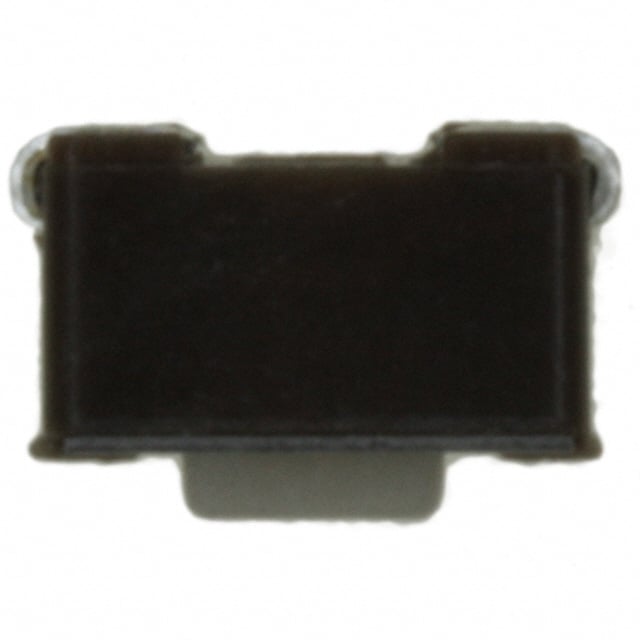

E-Switch TL3302AF260QJ
Image shown is a representation only
Manufacturer
Manufacturer No
TL3302AF260QJ
Quantity
563
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
SWITCH TACTILE SPST-NO 0.05A 12V
Detailed Description
Tactile Switch SPST-NO Top Actuated Surface Mount
DataSheet
Mfr
E-Switch
Series
TL3302
Circuit
SPST-NO
Outline
6.00mm x 3.50mm
Features
Tactile Feedback
Packaging
Tape & Reel (TR); Cut Tape (CT)
Part Status
Active
Illumination
Non-Illuminated
Actuator Type
Rectangular Button
Mounting Type
Surface Mount
Switch Travel
0.25mm
Mechanical Life
30,000 Cycles
Operating Force
260gf
Switch Function
Off-Mom
Actuator Material
Polyphenylene Sulfide (PPS)
Termination Style
J Lead
Base Product Number
TL3302
Actuator Orientation
Top Actuated
Operating Temperature
-20°C ~ 70°C
Contact Rating @ Voltage
0.05A @ 12VDC
Actuator Height off PCB, Vertical
4.30mm
| Attribute | Value |
|---|---|
| Mfr | E-Switch |
| Series | TL3302 |
| Circuit | SPST-NO |
| Outline | 6.00mm x 3.50mm |
| Features | Tactile Feedback |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Actuator Type | Rectangular Button |
| Mounting Type | Surface Mount |
| Switch Travel | 0.25mm |
| Mechanical Life | 30,000 Cycles |
| Operating Force | 260gf |
| Switch Function | Off-Mom |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Termination Style | J Lead |
| Base Product Number | TL3302 |
| Actuator Orientation | Top Actuated |
| Operating Temperature | -20°C ~ 70°C |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Height off PCB, Vertical | 4.30mm |
