E-Switch TL3240F160BT

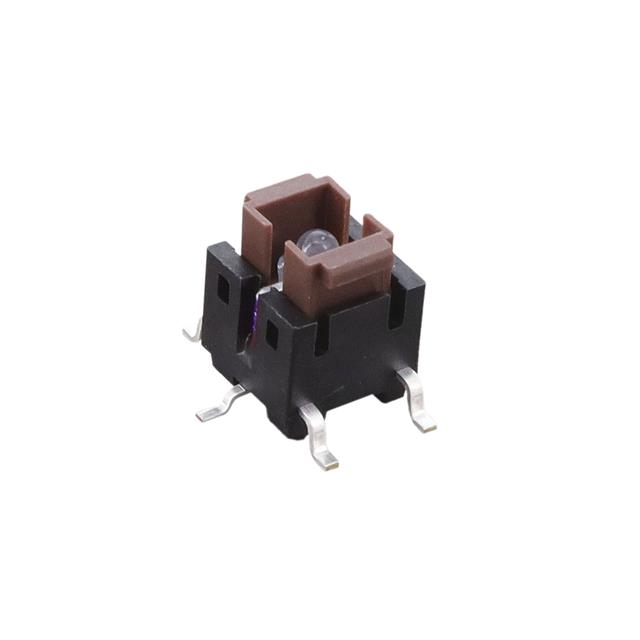

Image shown is a representation only
Manufacturer
Manufacturer No
TL3240F160BT
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
SWITCH TACTILE SPST-NO 0.05A 12V
Detailed Description
Tactile Switch SPST-NO Top Actuated Surface Mount
DataSheet
Mfr
E-Switch
Series
TL3240
Circuit
SPST-NO
Outline
6.10mm x 6.10mm
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Illumination
Illuminated
Actuator Type
Plunger for Cap
Mounting Type
Surface Mount
Switch Travel
0.20mm
Mechanical Life
500,000 Cycles
Operating Force
160gf
Switch Function
Off-Mom
Termination Style
Gull Wing
Base Product Number
TL3240
Actuator Orientation
Top Actuated
Operating Temperature
-25°C ~ 70°C
Contact Rating @ Voltage
0.05A @ 12VDC
Illumination Type, Color
LED, Blue
Illumination Voltage (Nominal)
3.2 VDC
Actuator Height off PCB, Vertical
7.80mm
| Attribute | Value |
|---|---|
| Mfr | E-Switch |
| Series | TL3240 |
| Circuit | SPST-NO |
| Outline | 6.10mm x 6.10mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Illumination | Illuminated |
| Actuator Type | Plunger for Cap |
| Mounting Type | Surface Mount |
| Switch Travel | 0.20mm |
| Mechanical Life | 500,000 Cycles |
| Operating Force | 160gf |
| Switch Function | Off-Mom |
| Termination Style | Gull Wing |
| Base Product Number | TL3240 |
| Actuator Orientation | Top Actuated |
| Operating Temperature | -25°C ~ 70°C |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Illumination Type, Color | LED, Blue |
| Illumination Voltage (Nominal) | 3.2 VDC |
| Actuator Height off PCB, Vertical | 7.80mm |
