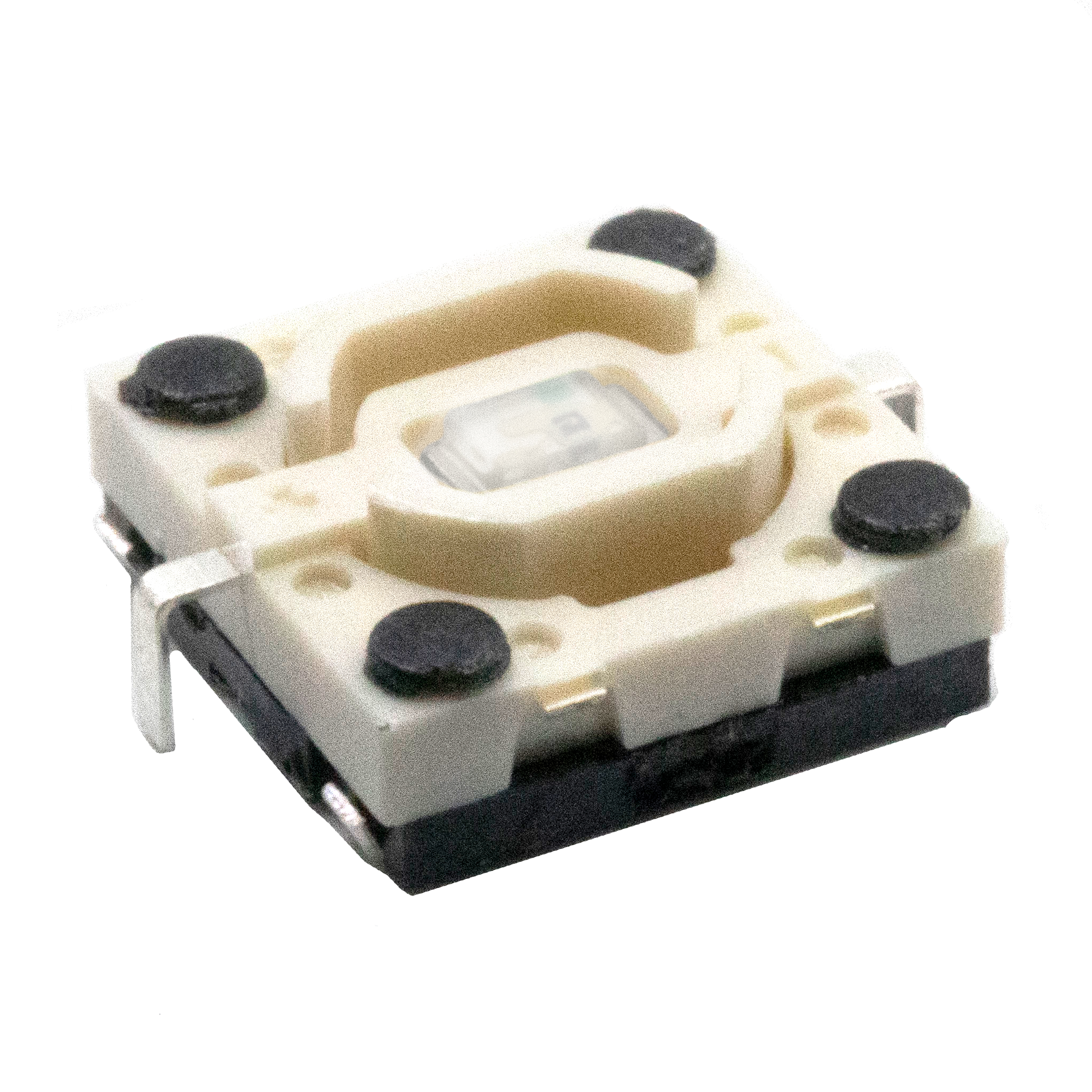

E-Switch TL3215AF160WQ
Image shown is a representation only
Manufacturer
Manufacturer No
TL3215AF160WQ
Packaging
Tape & Reel (TR)
Description
SWITCH TACTILE SPST-NO 0.05A 12V
Detailed Description
Tactile Switch SPST-NO Top Actuated Surface Mount
DataSheet
Mfr
E-Switch
Series
TL3215
Circuit
SPST-NO
Outline
4.90mm x 4.90mm
Packaging
Tape & Reel (TR)
Part Status
Active
Illumination
Illuminated
Actuator Type
Plunger for Cap
Mounting Type
Surface Mount
Switch Travel
0.25mm
Mechanical Life
1,000,000 Cycles
Operating Force
160gf
Switch Function
Off-Mom
Termination Style
SMD (SMT) Tab
Base Product Number
TL3215
Actuator Orientation
Top Actuated
Operating Temperature
-40°C ~ 85°C
Contact Rating @ Voltage
0.05A @ 12VDC
Illumination Type, Color
LED, White
Illumination Voltage (Nominal)
3 VDC
Actuator Height off PCB, Vertical
2.00mm
| Attribute | Value |
|---|---|
| Mfr | E-Switch |
| Series | TL3215 |
| Circuit | SPST-NO |
| Outline | 4.90mm x 4.90mm |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Illumination | Illuminated |
| Actuator Type | Plunger for Cap |
| Mounting Type | Surface Mount |
| Switch Travel | 0.25mm |
| Mechanical Life | 1,000,000 Cycles |
| Operating Force | 160gf |
| Switch Function | Off-Mom |
| Termination Style | SMD (SMT) Tab |
| Base Product Number | TL3215 |
| Actuator Orientation | Top Actuated |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Illumination Type, Color | LED, White |
| Illumination Voltage (Nominal) | 3 VDC |
| Actuator Height off PCB, Vertical | 2.00mm |
