Diodes Incorporated DMN61D9U-13

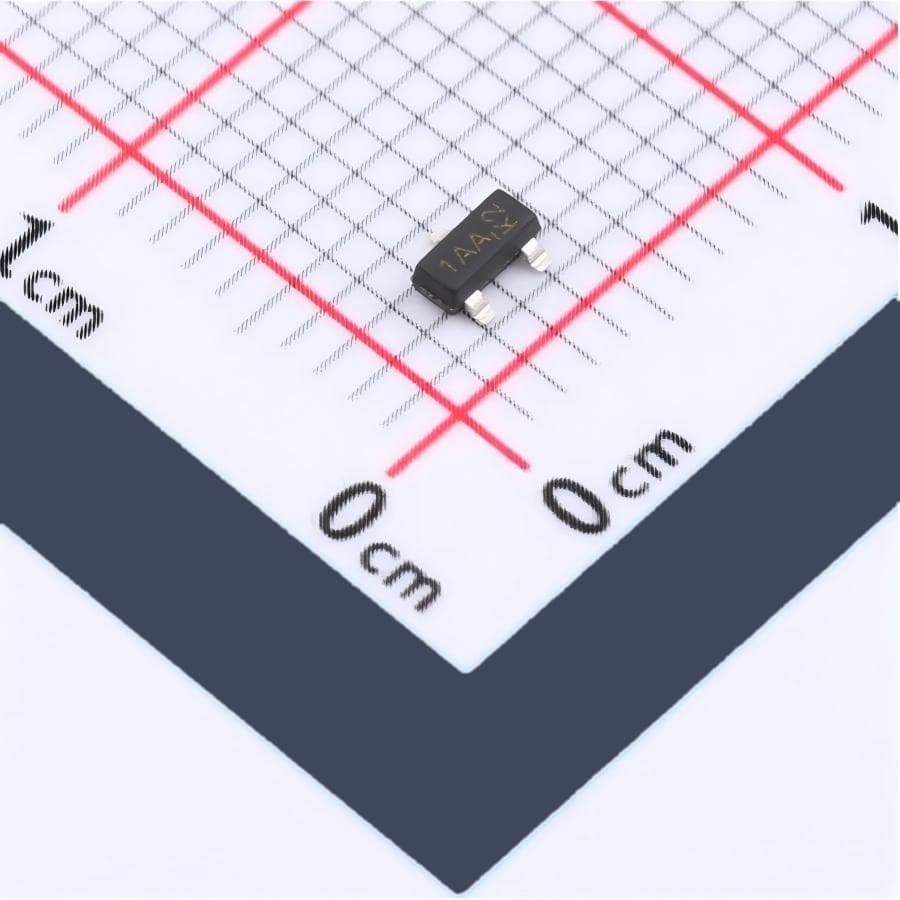

Image shown is a representation only
Manufacturer
Manufacturer No
DMN61D9U-13
Quantity
80
Availability
In Stock
Package
TO-236-3, SC-59, SOT-23-3
Packaging
Tape & Reel (TR)
Description
MOSFET N-CH 60V 380MA SOT23-3
Detailed Description
N-Channel 60 V 380mA (Ta) 370mW (Ta) Surface Mount SOT-23-3
DataSheet
Mfr
Diodes Incorporated
FET Type
N-Channel
Packaging
Tape & Reel (TR)
Vgs (Max)
±20V
Technology
MOSFET (Metal Oxide)
Part Status
Obsolete
Mounting Type
Surface Mount
Package / Case
TO-236-3, SC-59, SOT-23-3
Vgs(th) (Max) @ Id
1V @ 250µA
Base Product Number
DMN61
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
2Ohm @ 50mA, 5V
Power Dissipation (Max)
370mW (Ta)
Supplier Device Package
SOT-23-3
Gate Charge (Qg) (Max) @ Vgs
0.4 nC @ 4.5 V
Drain to Source Voltage (Vdss)
60 V
Input Capacitance (Ciss) (Max) @ Vds
28.5 pF @ 30 V
Drive Voltage (Max Rds On, Min Rds On)
1.8V, 5V
Current - Continuous Drain (Id) @ 25°C
380mA (Ta)
| Attribute | Value |
|---|---|
| Mfr | Diodes Incorporated |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR) |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Base Product Number | DMN61 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 2Ohm @ 50mA, 5V |
| Power Dissipation (Max) | 370mW (Ta) |
| Supplier Device Package | SOT-23-3 |
| Gate Charge (Qg) (Max) @ Vgs | 0.4 nC @ 4.5 V |
| Drain to Source Voltage (Vdss) | 60 V |
| Input Capacitance (Ciss) (Max) @ Vds | 28.5 pF @ 30 V |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 5V |
| Current - Continuous Drain (Id) @ 25°C | 380mA (Ta) |
