Diodes Incorporated DMN2015UFDE-7

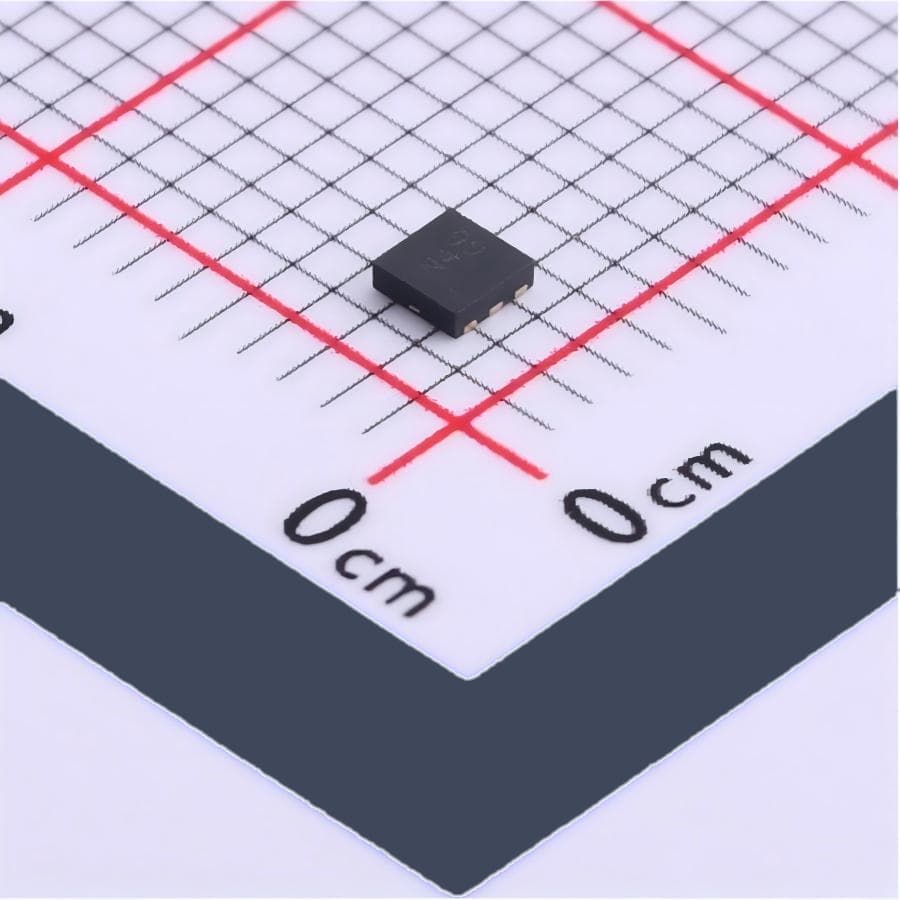

Image shown is a representation only
Manufacturer
Manufacturer No
DMN2015UFDE-7
Quantity
2990
Availability
In Stock
Package
6-PowerUDFN
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MOSFET N-CH 20V 10.5A 6UDFN
Detailed Description
N-Channel 20 V 10.5A (Ta) 660mW (Ta) Surface Mount U-DFN2020-6 (Type E)
DataSheet
Mfr
Diodes Incorporated
FET Type
N-Channel
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Vgs (Max)
±12V
Technology
MOSFET (Metal Oxide)
Part Status
Active
Mounting Type
Surface Mount
Package / Case
6-PowerUDFN
Vgs(th) (Max) @ Id
1.1V @ 250µA
Base Product Number
DMN2015
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
11.6mOhm @ 8.5A, 4.5V
Power Dissipation (Max)
660mW (Ta)
Supplier Device Package
U-DFN2020-6 (Type E)
Gate Charge (Qg) (Max) @ Vgs
45.6 nC @ 10 V
Drain to Source Voltage (Vdss)
20 V
Input Capacitance (Ciss) (Max) @ Vds
1779 pF @ 10 V
Drive Voltage (Max Rds On, Min Rds On)
1.5V, 4.5V
Current - Continuous Drain (Id) @ 25°C
10.5A (Ta)
| Attribute | Value |
|---|---|
| Mfr | Diodes Incorporated |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Vgs (Max) | ±12V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 6-PowerUDFN |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA |
| Base Product Number | DMN2015 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 11.6mOhm @ 8.5A, 4.5V |
| Power Dissipation (Max) | 660mW (Ta) |
| Supplier Device Package | U-DFN2020-6 (Type E) |
| Gate Charge (Qg) (Max) @ Vgs | 45.6 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 20 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1779 pF @ 10 V |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Current - Continuous Drain (Id) @ 25°C | 10.5A (Ta) |
