Step1: Product

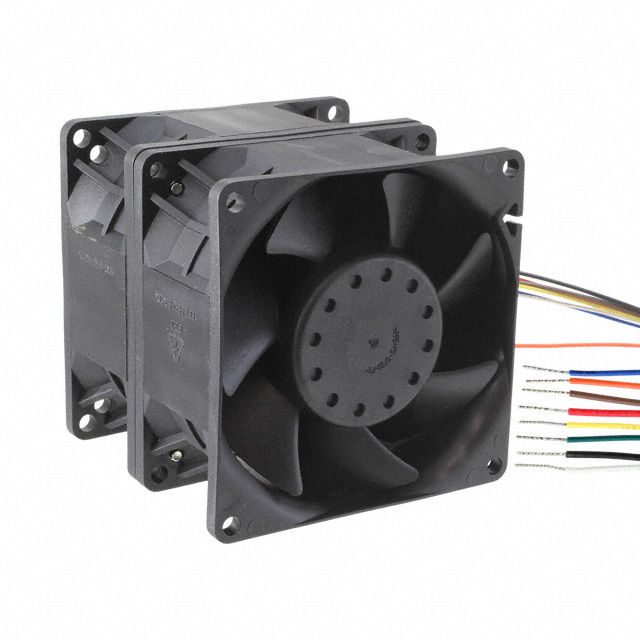

Delta Electronics GFC0848DWB74
Image shown is a representation only
Manufacturer
Manufacturer No
GFC0848DWB74
Packaging
Box
Description
FAN AXIAL DUAL 80X80MM 48VDC
Detailed Description
Fan Tubeaxial (Dual) 48VDC Square - 80mm L x 80mm H Ball 175.0 CFM (4.90m³/min) 4 Wire Leads per Fan
DataSheet
Mfr
Delta Electronics
RPM
12500 Front, 11000 Rear
Noise
76.5dB(A)
Width
80.00mm
Series
GFC
Weight
0.855 lb (387.82 g)
Air Flow
175.0 CFM (4.90m³/min)
Fan Type
Tubeaxial (Dual)
Features
Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Packaging
Box
Part Status
Obsolete
Termination
4 Wire Leads per Fan
Bearing Type
Ball
Power (Watts)
74.88 W
Voltage Range
36 ~ 60VDC
Approval Agency
CE, cURus, TUV
Static Pressure
4.470 in H2O (1113.4 Pa)
Voltage - Rated
48VDC
Lifetime @ Temp.
70000 Hrs @ 40°C
Material - Blade
Plastic
Material - Frame
Plastic
Size / Dimension
Square - 80mm L x 80mm H
Ingress Protection
IP51 - Dust Protected
Base Product Number
GFC0848
Current Rating (Amps)
1.56A
Operating Temperature
14 ~ 158°F (-10 ~ 70°C)
| Attribute | Value |
|---|---|
| Mfr | Delta Electronics |
| RPM | 12500 Front, 11000 Rear |
| Noise | 76.5dB(A) |
| Width | 80.00mm |
| Series | GFC |
| Weight | 0.855 lb (387.82 g) |
| Air Flow | 175.0 CFM (4.90m³/min) |
| Fan Type | Tubeaxial (Dual) |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Packaging | Box |
| Part Status | Obsolete |
| Termination | 4 Wire Leads per Fan |
| Bearing Type | Ball |
| Power (Watts) | 74.88 W |
| Voltage Range | 36 ~ 60VDC |
| Approval Agency | CE, cURus, TUV |
| Static Pressure | 4.470 in H2O (1113.4 Pa) |
| Voltage - Rated | 48VDC |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Size / Dimension | Square - 80mm L x 80mm H |
| Ingress Protection | IP51 - Dust Protected |
| Base Product Number | GFC0848 |
| Current Rating (Amps) | 1.56A |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
