Step1: Product

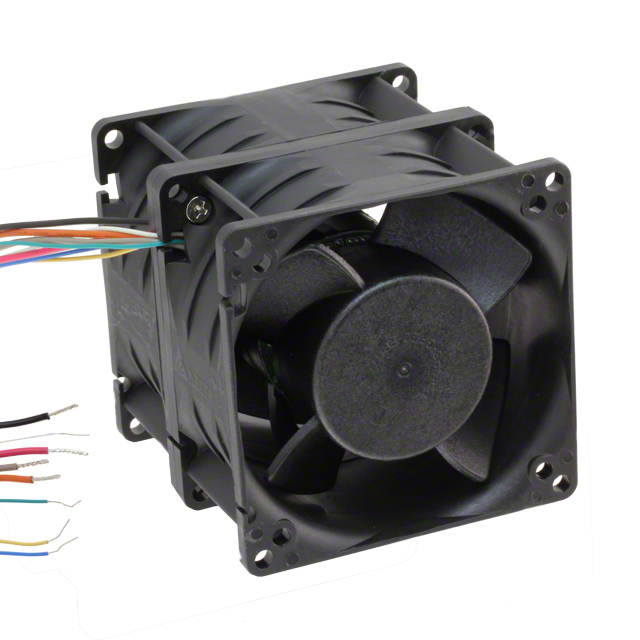

Delta Electronics GFC0812DW-SM00B7P
Image shown is a representation only
Manufacturer
Manufacturer No
GFC0812DW-SM00B7P
Packaging
Box
Description
FAN AXIAL DUAL 80X80MM 12VDC
Detailed Description
Fan Tubeaxial (Dual) 12VDC Square - 80mm L x 80mm H Ball 167.0 CFM (4.68m³/min) 4 Wire Leads per Fan
DataSheet
Mfr
Delta Electronics
RPM
12000 Front, 10500 Rear
Noise
74.5dB(A)
Width
80.00mm
Series
GFC - Three-Phase
Weight
0.851 lb (386.01 g)
Air Flow
167.0 CFM (4.68m³/min)
Fan Type
Tubeaxial (Dual)
Features
Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Packaging
Box
Part Status
Obsolete
Termination
4 Wire Leads per Fan
Bearing Type
Ball
Power (Watts)
62.4 W
Voltage Range
10.8 ~ 12.6VDC
Approval Agency
CE, cURus, TUV
Static Pressure
4.170 in H2O (1038.7 Pa)
Voltage - Rated
12VDC
Lifetime @ Temp.
70000 Hrs @ 40°C
Material - Blade
Plastic
Material - Frame
Plastic
Size / Dimension
Square - 80mm L x 80mm H
Base Product Number
GFC0812
Current Rating (Amps)
5.20A
Operating Temperature
14 ~ 140°F (-10 ~ 60°C)
| Attribute | Value |
|---|---|
| Mfr | Delta Electronics |
| RPM | 12000 Front, 10500 Rear |
| Noise | 74.5dB(A) |
| Width | 80.00mm |
| Series | GFC - Three-Phase |
| Weight | 0.851 lb (386.01 g) |
| Air Flow | 167.0 CFM (4.68m³/min) |
| Fan Type | Tubeaxial (Dual) |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Packaging | Box |
| Part Status | Obsolete |
| Termination | 4 Wire Leads per Fan |
| Bearing Type | Ball |
| Power (Watts) | 62.4 W |
| Voltage Range | 10.8 ~ 12.6VDC |
| Approval Agency | CE, cURus, TUV |
| Static Pressure | 4.170 in H2O (1038.7 Pa) |
| Voltage - Rated | 12VDC |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Size / Dimension | Square - 80mm L x 80mm H |
| Base Product Number | GFC0812 |
| Current Rating (Amps) | 5.20A |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
