Step1: Product
Delta Electronics GFC0812DS-CMA8

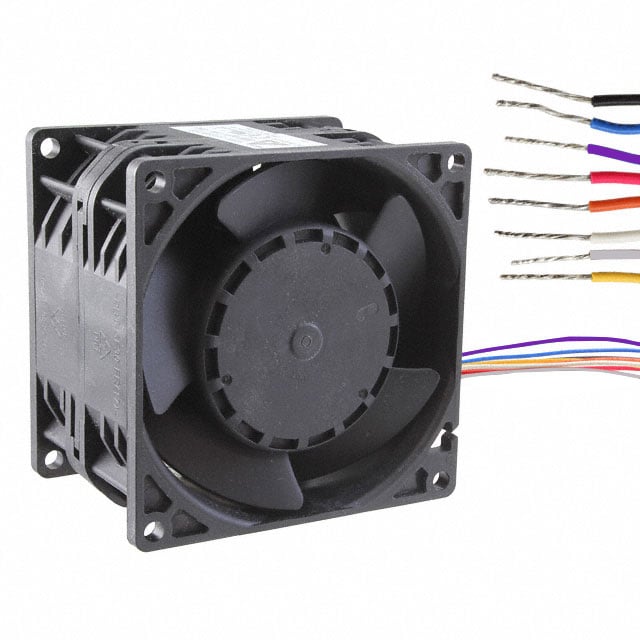

Image shown is a representation only
Manufacturer
Manufacturer No
GFC0812DS-CMA8
Packaging
Box
Description
FAN AXIAL DUAL 80X56MM 12VDC
Detailed Description
Fan Tubeaxial (Dual) 12VDC Square - 80mm L x 80mm H Ball 90.0 CFM (2.52m³/min) 4 Wire Leads per Fan
DataSheet
Mfr
Delta Electronics
RPM
12000 Front, 10500 Rear
Noise
72.6dB(A)
Width
56.00mm
Series
GFC
Weight
0.75 lb (340.19 g)
Air Flow
90.0 CFM (2.52m³/min)
Fan Type
Tubeaxial (Dual)
Features
Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Packaging
Box
Part Status
Active
Termination
4 Wire Leads per Fan
Bearing Type
Ball
Power (Watts)
26.04 W
Voltage Range
10.8 ~ 12.6VDC
Approval Agency
CE, cURus, TUV
Static Pressure
3.827 in H2O (953.3 Pa)
Voltage - Rated
12VDC
Lifetime @ Temp.
50000 Hrs @ 40°C
Material - Blade
Plastic
Material - Frame
Plastic
Size / Dimension
Square - 80mm L x 80mm H
Base Product Number
GFC0812
Current Rating (Amps)
2.17A
Operating Temperature
14 ~ 140°F (-10 ~ 60°C)
| Attribute | Value |
|---|---|
| Mfr | Delta Electronics |
| RPM | 12000 Front, 10500 Rear |
| Noise | 72.6dB(A) |
| Width | 56.00mm |
| Series | GFC |
| Weight | 0.75 lb (340.19 g) |
| Air Flow | 90.0 CFM (2.52m³/min) |
| Fan Type | Tubeaxial (Dual) |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Packaging | Box |
| Part Status | Active |
| Termination | 4 Wire Leads per Fan |
| Bearing Type | Ball |
| Power (Watts) | 26.04 W |
| Voltage Range | 10.8 ~ 12.6VDC |
| Approval Agency | CE, cURus, TUV |
| Static Pressure | 3.827 in H2O (953.3 Pa) |
| Voltage - Rated | 12VDC |
| Lifetime @ Temp. | 50000 Hrs @ 40°C |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Size / Dimension | Square - 80mm L x 80mm H |
| Base Product Number | GFC0812 |
| Current Rating (Amps) | 2.17A |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
