Step1: Product
DComponents AMSR3-3.3EZ

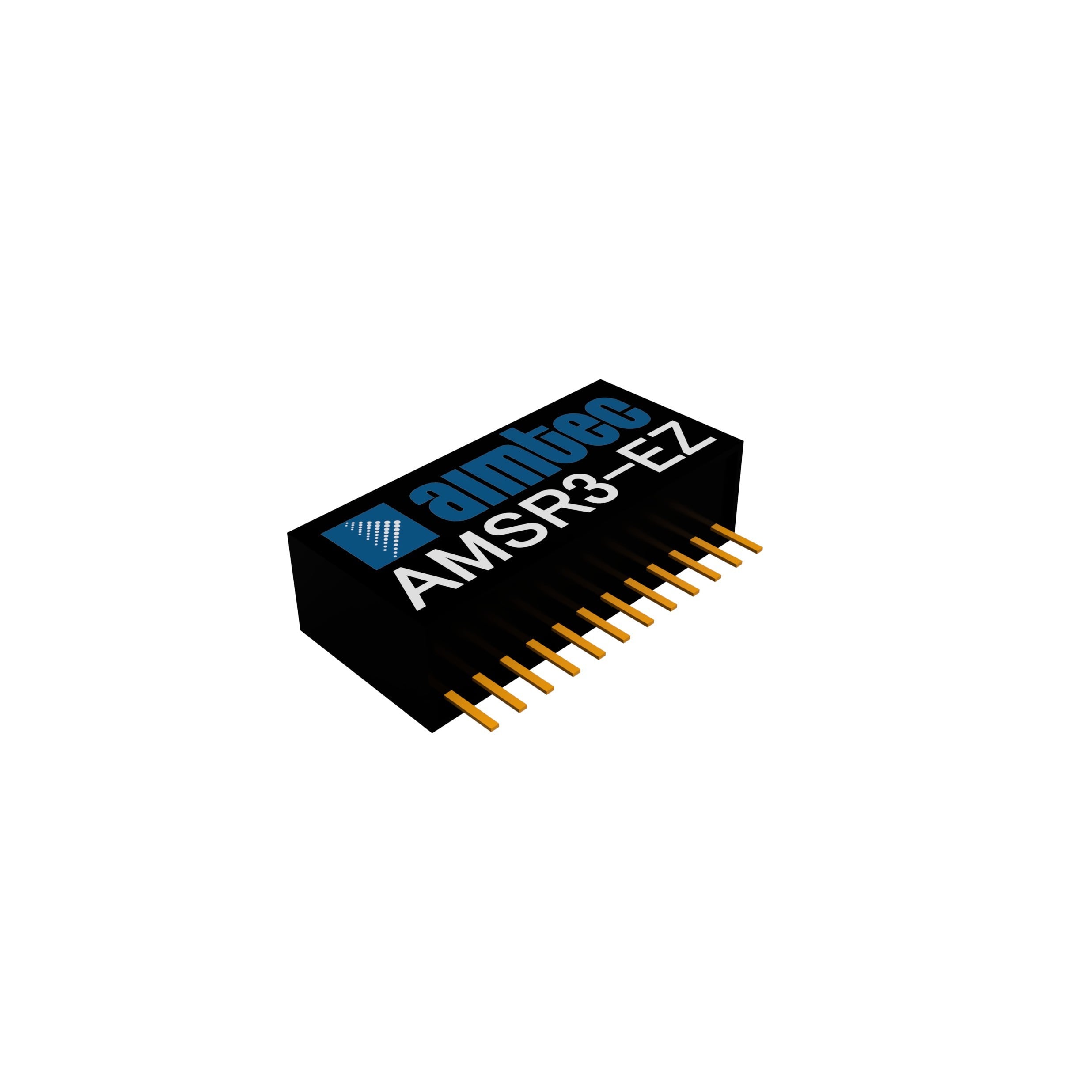

Image shown is a representation only
Manufacturer
Manufacturer No
AMSR3-3.3EZ
Package
12-SIP Module, 10 Leads
Packaging
Tube
Description
9.9W SWITCHING REGULATORS, 8-36V
Detailed Description
Non-Isolated PoL Module DC DC Converter 1 Output -3.3 ~ 3.3V 3A 8V - 36V Input
DataSheet
Mfr
DComponents
Type
Non-Isolated PoL Module
Series
AMSR3-EZ
Features
SCP
Packaging
Tube
Efficiency
90%
Part Status
Active
Applications
Industrial, ITE (Commercial)
Mounting Type
Through Hole
Power (Watts)
9.9 W
Qualification
AEC-Q101
Package / Case
12-SIP Module, 10 Leads
Size / Dimension
1.27" L x 0.36" W x 0.58" H (32.2mm x 9.1mm x 14.9mm)
Number of Outputs
1
Voltage - Output 1
-3.3 ~ 3.3V
Operating Temperature
-40°C ~ 85°C
Voltage - Input (Max)
36V
Voltage - Input (Min)
8V
Current - Output (Max)
3A
Supplier Device Package
12-SIP
| Attribute | Value |
|---|---|
| Mfr | DComponents |
| Type | Non-Isolated PoL Module |
| Series | AMSR3-EZ |
| Features | SCP |
| Packaging | Tube |
| Efficiency | 90% |
| Part Status | Active |
| Applications | Industrial, ITE (Commercial) |
| Mounting Type | Through Hole |
| Power (Watts) | 9.9 W |
| Qualification | AEC-Q101 |
| Package / Case | 12-SIP Module, 10 Leads |
| Size / Dimension | 1.27" L x 0.36" W x 0.58" H (32.2mm x 9.1mm x 14.9mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | -3.3 ~ 3.3V |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Input (Max) | 36V |
| Voltage - Input (Min) | 8V |
| Current - Output (Max) | 3A |
| Supplier Device Package | 12-SIP |
