Step1: Product
DComponents AM2G-1218DZ

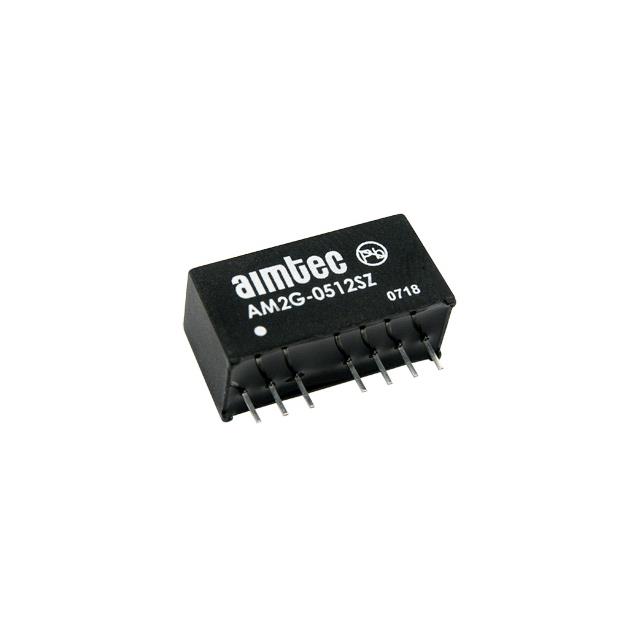

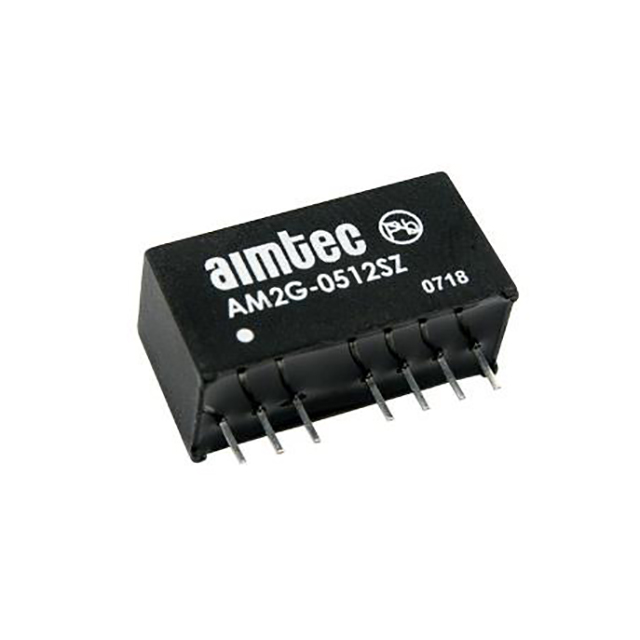

Image shown is a representation only
Manufacturer
Manufacturer No
AM2G-1218DZ
Package
8-SIP Module
Packaging
Tube
Description
DC DC CONVERTER +/-18V 2W
Detailed Description
Isolated Module DC DC Converter 2 Output -18 ~ 18V -18V 56mA, 56mA 9V - 18V Input
DataSheet
Mfr
DComponents
Type
Isolated Module
Series
AM2G-Z (2W)
Features
Remote On/Off
Packaging
Tube
Efficiency
78%
Part Status
Active
Applications
ITE (Commercial)
Mounting Type
Through Hole
Power (Watts)
2 W
Package / Case
8-SIP Module
Approval Agency
CE, cURus, EN, IEC, UL
Standard Number
62368-1
Size / Dimension
0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm)
Number of Outputs
2
Voltage - Output 1
-18 ~ 18V
Voltage - Output 2
-18V
Base Product Number
AM2G
Voltage - Isolation
1 kV
Operating Temperature
-40°C ~ 85°C
Voltage - Input (Max)
18V
Voltage - Input (Min)
9V
Current - Output (Max)
56mA, 56mA
| Attribute | Value |
|---|---|
| Mfr | DComponents |
| Type | Isolated Module |
| Series | AM2G-Z (2W) |
| Features | Remote On/Off |
| Packaging | Tube |
| Efficiency | 78% |
| Part Status | Active |
| Applications | ITE (Commercial) |
| Mounting Type | Through Hole |
| Power (Watts) | 2 W |
| Package / Case | 8-SIP Module |
| Approval Agency | CE, cURus, EN, IEC, UL |
| Standard Number | 62368-1 |
| Size / Dimension | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm) |
| Number of Outputs | 2 |
| Voltage - Output 1 | -18 ~ 18V |
| Voltage - Output 2 | -18V |
| Base Product Number | AM2G |
| Voltage - Isolation | 1 kV |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Input (Max) | 18V |
| Voltage - Input (Min) | 9V |
| Current - Output (Max) | 56mA, 56mA |
