Step1: Product
DComponents AM2GH-2403SZ

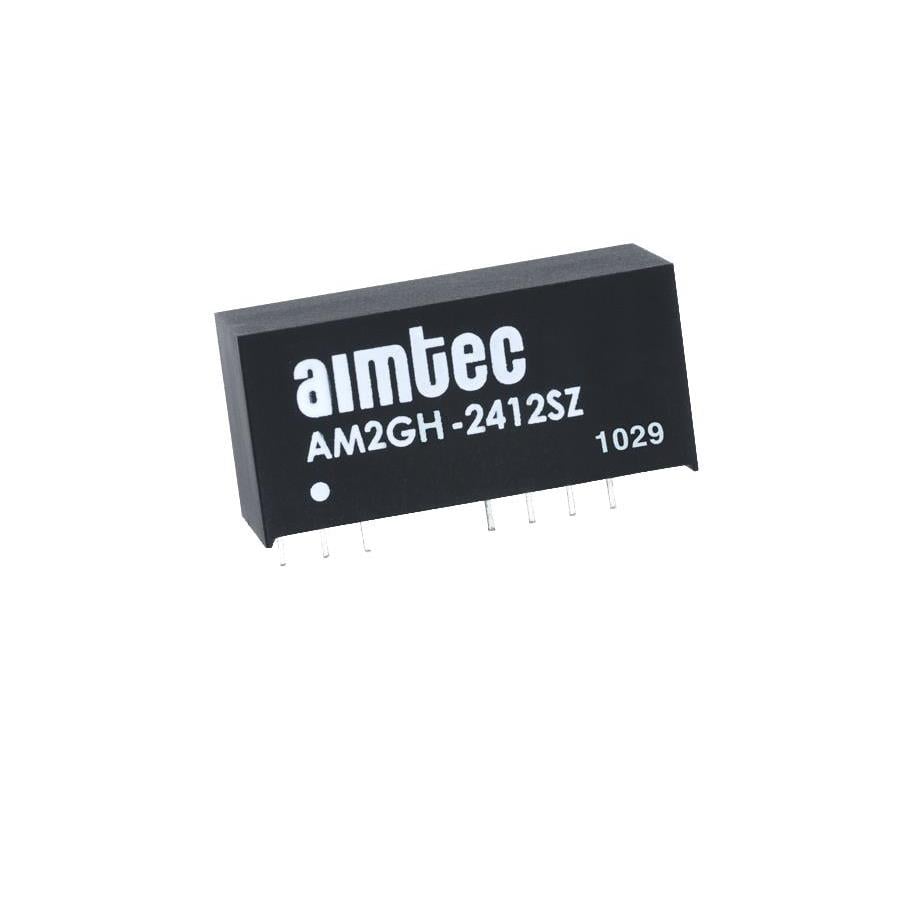

Image shown is a representation only
Manufacturer
Manufacturer No
AM2GH-2403SZ
Package
8-SIP Module
Packaging
Tube
Description
DC DC CONVERTER 3.3V 1.7W
Detailed Description
Isolated Module DC DC Converter 1 Output 3.3V 500mA 9V - 36V Input
DataSheet
Mfr
DComponents
Type
Isolated Module
Series
AM2GH-Z (2W)
Features
Remote On/Off
Packaging
Tube
Efficiency
71%
Part Status
Active
Applications
ITE (Commercial)
Mounting Type
Through Hole
Power (Watts)
2 W
Package / Case
8-SIP Module
Approval Agency
CE
Size / Dimension
0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm)
Number of Outputs
1
Voltage - Output 1
3.3V
Base Product Number
AM2GH
Voltage - Isolation
1.6 kV
Operating Temperature
-40°C ~ 85°C
Voltage - Input (Max)
36V
Voltage - Input (Min)
9V
Current - Output (Max)
500mA
| Attribute | Value |
|---|---|
| Mfr | DComponents |
| Type | Isolated Module |
| Series | AM2GH-Z (2W) |
| Features | Remote On/Off |
| Packaging | Tube |
| Efficiency | 71% |
| Part Status | Active |
| Applications | ITE (Commercial) |
| Mounting Type | Through Hole |
| Power (Watts) | 2 W |
| Package / Case | 8-SIP Module |
| Approval Agency | CE |
| Size / Dimension | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 3.3V |
| Base Product Number | AM2GH |
| Voltage - Isolation | 1.6 kV |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Input (Max) | 36V |
| Voltage - Input (Min) | 9V |
| Current - Output (Max) | 500mA |
