Step1: Product
Cosel USA, Inc. CHS3002424

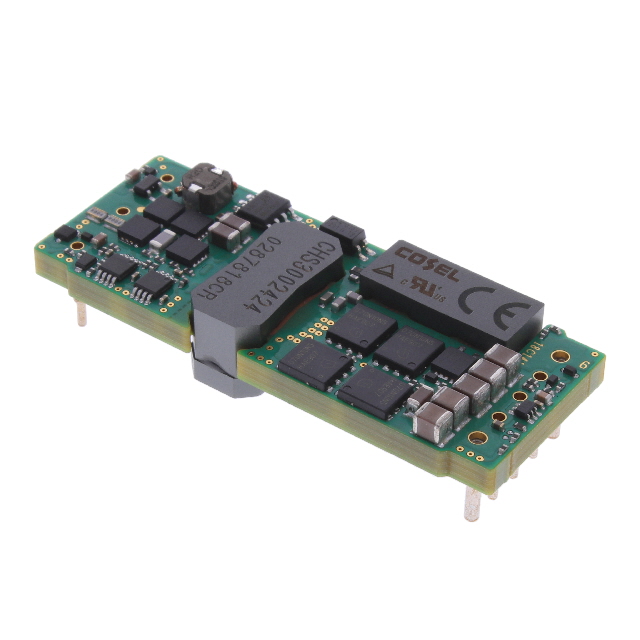

Image shown is a representation only
Manufacturer
Manufacturer No
CHS3002424
Package
8-DIP Module
Packaging
Box
Description
DC DC CONVERTER 24V 252W
Detailed Description
Isolated Module DC DC Converter 1 Output 24V 10.5A 18V - 36V Input
DataSheet
Mfr
Cosel USA, Inc.
Type
Isolated Module
Series
CHS (300W)
Features
Adjustable Output
Packaging
Box
Efficiency
94%
Part Status
Active
Applications
ITE (Commercial)
Mounting Type
Through Hole
Power (Watts)
252 W
Package / Case
8-DIP Module
Approval Agency
CE, cURus, TUV
Control Features
Enable, Active Low
Size / Dimension
2.30" L x 0.90" W x 0.43" H (58.4mm x 22.9mm x 11.0mm)
Number of Outputs
1
Voltage - Output 1
24V
Voltage - Isolation
2.25 kV
Operating Temperature
-40°C ~ 85°C (With Derating)
Voltage - Input (Max)
36V
Voltage - Input (Min)
18V
Current - Output (Max)
10.5A
| Attribute | Value |
|---|---|
| Mfr | Cosel USA, Inc. |
| Type | Isolated Module |
| Series | CHS (300W) |
| Features | Adjustable Output |
| Packaging | Box |
| Efficiency | 94% |
| Part Status | Active |
| Applications | ITE (Commercial) |
| Mounting Type | Through Hole |
| Power (Watts) | 252 W |
| Package / Case | 8-DIP Module |
| Approval Agency | CE, cURus, TUV |
| Control Features | Enable, Active Low |
| Size / Dimension | 2.30" L x 0.90" W x 0.43" H (58.4mm x 22.9mm x 11.0mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 24V |
| Voltage - Isolation | 2.25 kV |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Voltage - Input (Max) | 36V |
| Voltage - Input (Min) | 18V |
| Current - Output (Max) | 10.5A |
