Step1: Product
Cosel USA, Inc. MGFW304815

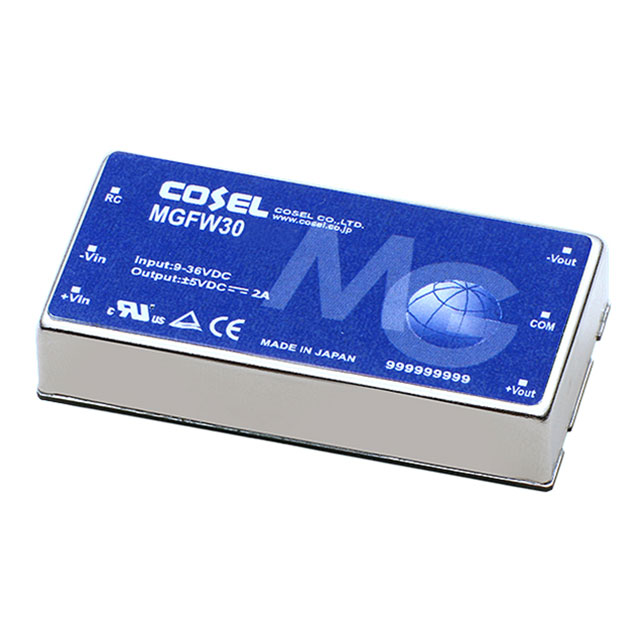

Image shown is a representation only
Manufacturer
Manufacturer No
MGFW304815
Quantity
3
Availability
In Stock
Package
6-DIP Module
Packaging
Box
Description
DC DC CONVERTER +/-15V
Detailed Description
Isolated Module DC DC Converter 2 Output 15V or 30V -15V 1A, 1A 18V - 76V Input
DataSheet
Mfr
Cosel USA, Inc.
Type
Isolated Module
Series
MGFW (30W)
Features
Bridgeable, Remote On/Off, OCP
Packaging
Box
Efficiency
87%
Part Status
Active
Applications
ITE (Commercial)
Mounting Type
Through Hole
Package / Case
6-DIP Module
Size / Dimension
2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 9.9mm)
Number of Outputs
2
Voltage - Output 1
15V or 30V
Voltage - Output 2
-15V
Voltage - Isolation
1.5 kV
Operating Temperature
-40°C ~ 85°C (With Derating)
Voltage - Input (Max)
76V
Voltage - Input (Min)
18V
Current - Output (Max)
1A, 1A
| Attribute | Value |
|---|---|
| Mfr | Cosel USA, Inc. |
| Type | Isolated Module |
| Series | MGFW (30W) |
| Features | Bridgeable, Remote On/Off, OCP |
| Packaging | Box |
| Efficiency | 87% |
| Part Status | Active |
| Applications | ITE (Commercial) |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 9.9mm) |
| Number of Outputs | 2 |
| Voltage - Output 1 | 15V or 30V |
| Voltage - Output 2 | -15V |
| Voltage - Isolation | 1.5 kV |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Voltage - Input (Max) | 76V |
| Voltage - Input (Min) | 18V |
| Current - Output (Max) | 1A, 1A |
