Step1: Product

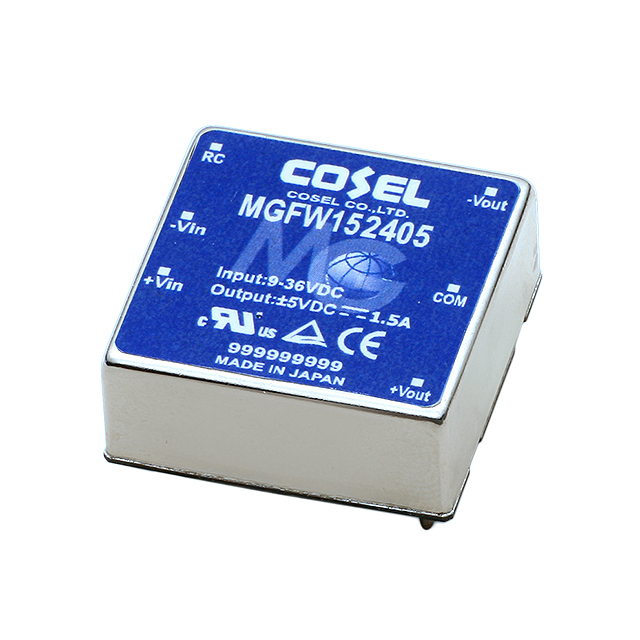

Cosel USA, Inc. MGFW152405
Image shown is a representation only
Manufacturer
Manufacturer No
MGFW152405
Quantity
3
Availability
In Stock
Package
6-DIP Module
Packaging
Box
Description
DC DC CONVERTER +/-5V
Detailed Description
Isolated Module DC DC Converter 2 Output 5V or 10V -5V 1.5A, 1.5A 9V - 36V Input
Datasheet
Mfr
Cosel USA, Inc.
Type
Isolated Module
Series
MGFW (15W)
Features
Bridgeable, Remote On/Off, OCP
Packaging
Box
Efficiency
84%
Applications
ITE (Commercial)
Mounting Type
Through Hole
Package / Case
6-DIP Module
Size / Dimension
1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Number of Outputs
2
Voltage - Output 1
5V or 10V
Voltage - Output 2
-5V
Voltage - Isolation
1.5 kV
Operating Temperature
-40°C ~ 85°C (With Derating)
Voltage - Input (Max)
36V
Voltage - Input (Min)
9V
Current - Output (Max)
1.5A, 1.5A
| Attribute | Value |
|---|---|
| Mfr | Cosel USA, Inc. |
| Type | Isolated Module |
| Series | MGFW (15W) |
| Features | Bridgeable, Remote On/Off, OCP |
| Packaging | Box |
| Efficiency | 84% |
| Applications | ITE (Commercial) |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) |
| Number of Outputs | 2 |
| Voltage - Output 1 | 5V or 10V |
| Voltage - Output 2 | -5V |
| Voltage - Isolation | 1.5 kV |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Voltage - Input (Max) | 36V |
| Voltage - Input (Min) | 9V |
| Current - Output (Max) | 1.5A, 1.5A |
