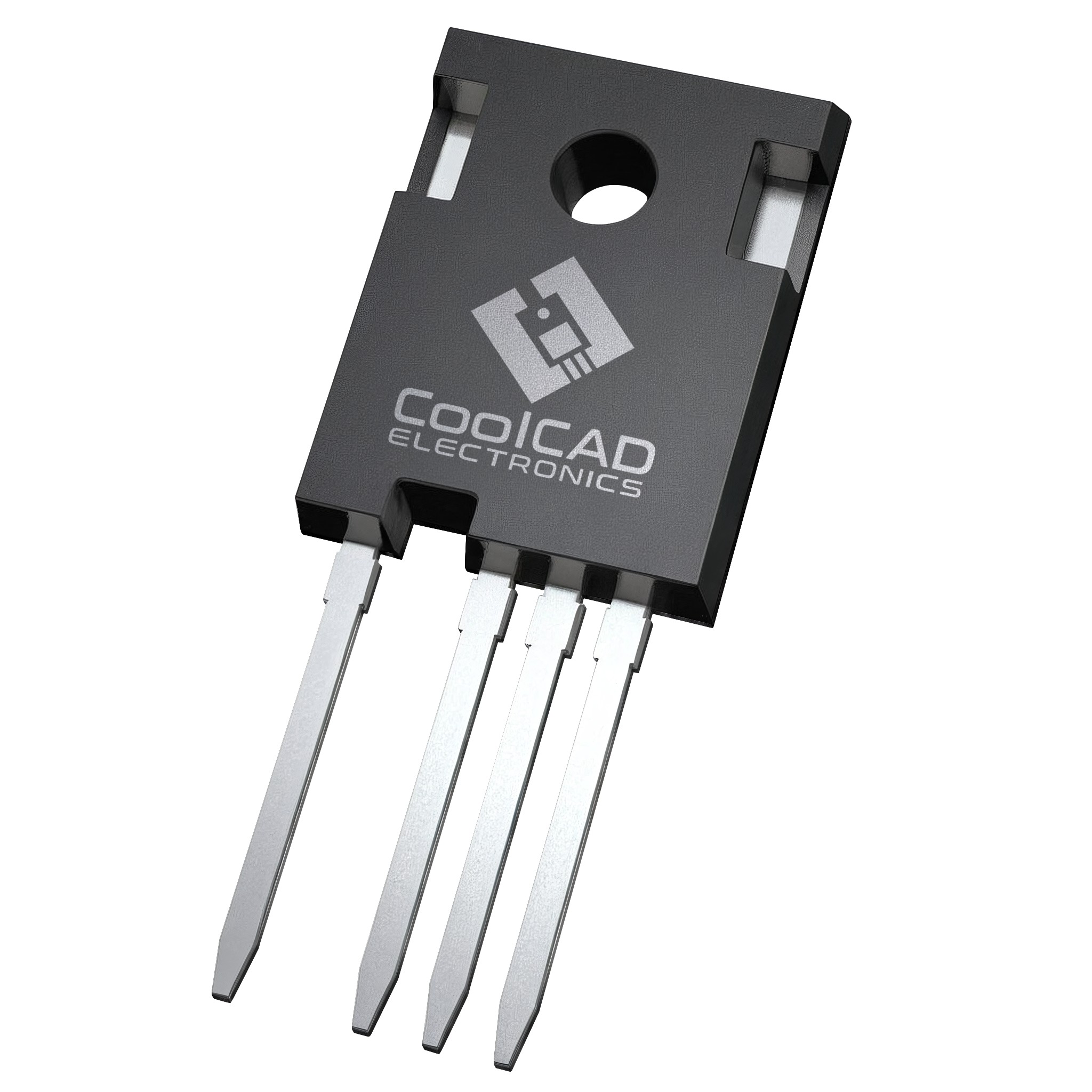

CoolCAD CC1740744L
Image shown is a representation only
Manufacturer
Manufacturer No
CC1740744L
Package
TO-247-4L
Packaging
Bulk
Description
1700V 40mOhm SiC MOSFET
Detailed Description
N-Channel 1700 V 50A 155W (Ta) Through Hole TO-247-4L
DataSheet
Mfr
CoolCAD
Series
*
FET Type
N-Channel
Packaging
Bulk
Vgs (Max)
+20V, -5V
Technology
SiCFET (Silicon Carbide)
Part Status
Active
Mounting Type
Through Hole
Package / Case
TO-247-4L
Vgs(th) (Max) @ Id
2.93V @ 20mA
Operating Temperature
-65°C ~ 195°C (TA)
Rds On (Max) @ Id, Vgs
45mOhm @ 40A, 20V
Power Dissipation (Max)
155W (Ta)
Supplier Device Package
TO-247-4L
Gate Charge (Qg) (Max) @ Vgs
150 nC @ 18 V
Drain to Source Voltage (Vdss)
1700 V
Input Capacitance (Ciss) (Max) @ Vds
1750 pF @ 1000 V
Drive Voltage (Max Rds On, Min Rds On)
15V, 20V
Current - Continuous Drain (Id) @ 25°C
50A
| Attribute | Value |
|---|---|
| Mfr | CoolCAD |
| Series | * |
| FET Type | N-Channel |
| Packaging | Bulk |
| Vgs (Max) | +20V, -5V |
| Technology | SiCFET (Silicon Carbide) |
| Part Status | Active |
| Mounting Type | Through Hole |
| Package / Case | TO-247-4L |
| Vgs(th) (Max) @ Id | 2.93V @ 20mA |
| Operating Temperature | -65°C ~ 195°C (TA) |
| Rds On (Max) @ Id, Vgs | 45mOhm @ 40A, 20V |
| Power Dissipation (Max) | 155W (Ta) |
| Supplier Device Package | TO-247-4L |
| Gate Charge (Qg) (Max) @ Vgs | 150 nC @ 18 V |
| Drain to Source Voltage (Vdss) | 1700 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1750 pF @ 1000 V |
| Drive Voltage (Max Rds On, Min Rds On) | 15V, 20V |
| Current - Continuous Drain (Id) @ 25°C | 50A |
