CoolCAD CC-CL-75-1023

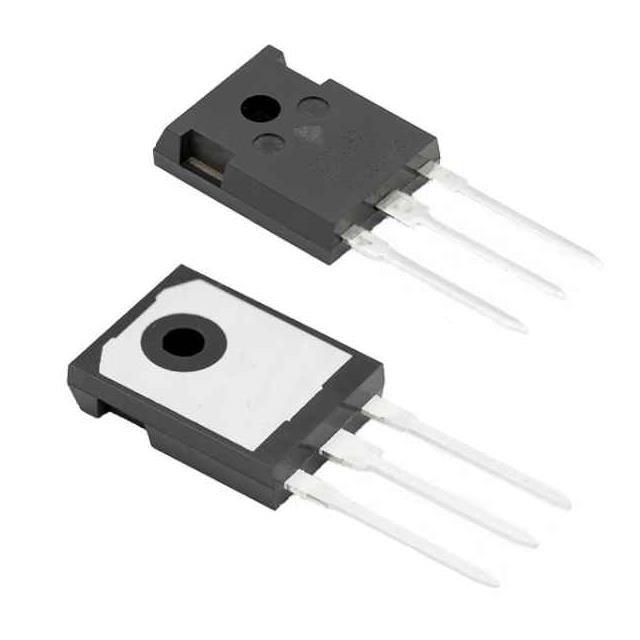

Image shown is a representation only
Manufacturer
Manufacturer No
CC-CL-75-1023
Package
TO-247-3
Packaging
Bulk
Description
SiC MOSFET 33A 1200V TO-247-3
Detailed Description
N-Channel 1200 V 33A 135W Through Hole TO-247-3
DataSheet
Mfr
CoolCAD
FET Type
N-Channel
Packaging
Bulk
Vgs (Max)
+20V, -5V
Technology
SiCFET (Silicon Carbide)
Part Status
Active
Mounting Type
Through Hole
Package / Case
TO-247-3
Vgs(th) (Max) @ Id
2.9V @ 10mA
Operating Temperature
175°C (TJ)
Rds On (Max) @ Id, Vgs
70mOhm @ 10A, 20V
Power Dissipation (Max)
135W
Supplier Device Package
TO-247-3
Gate Charge (Qg) (Max) @ Vgs
90 nC @ 18 V
Drain to Source Voltage (Vdss)
1200 V
Input Capacitance (Ciss) (Max) @ Vds
930 pF @ 1000 V
Drive Voltage (Max Rds On, Min Rds On)
15V, 20V
Current - Continuous Drain (Id) @ 25°C
33A
| Attribute | Value |
|---|---|
| Mfr | CoolCAD |
| FET Type | N-Channel |
| Packaging | Bulk |
| Vgs (Max) | +20V, -5V |
| Technology | SiCFET (Silicon Carbide) |
| Part Status | Active |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Vgs(th) (Max) @ Id | 2.9V @ 10mA |
| Operating Temperature | 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 70mOhm @ 10A, 20V |
| Power Dissipation (Max) | 135W |
| Supplier Device Package | TO-247-3 |
| Gate Charge (Qg) (Max) @ Vgs | 90 nC @ 18 V |
| Drain to Source Voltage (Vdss) | 1200 V |
| Input Capacitance (Ciss) (Max) @ Vds | 930 pF @ 1000 V |
| Drive Voltage (Max Rds On, Min Rds On) | 15V, 20V |
| Current - Continuous Drain (Id) @ 25°C | 33A |
