CoolCAD CC-CN-23-0123

Name: CC-CN-23-0123
Brand: CoolCAD
SKU: 11144058-CC-CN-23-0123
Availability: LimitedAvailability

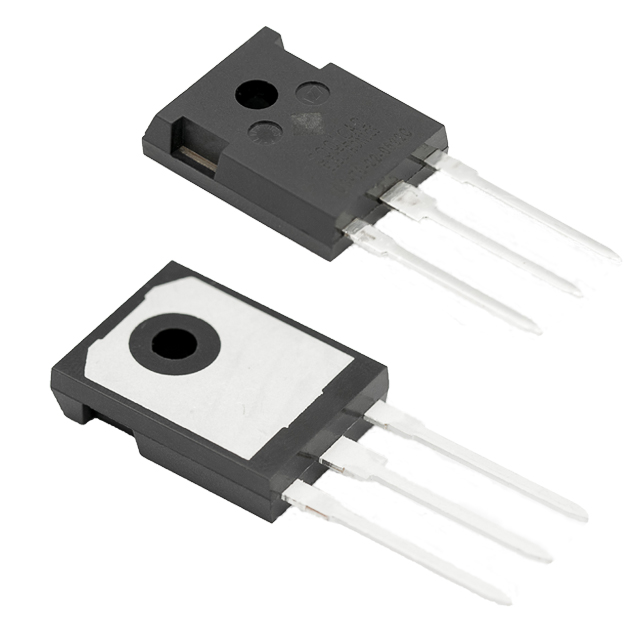

Image shown is a representation only

Manufacturer

Manufacturer No

CC-CN-23-0123

Package

TO-247-3

Packaging

Bulk

Description

SiC MOSFET 20A 1200V TO-247-3

Detailed Description

20A (Ta) Through Hole TO-247-3

Datasheet

Mfr

CoolCAD

Packaging

Bulk

Technology

SiCFET (Silicon Carbide)

Mounting Type

Through Hole

Package / Case

TO-247-3

Vgs(th) (Max) @ Id

2.4V @ 5mA

Operating Temperature

-40°C ~ 175°C (TJ)

Rds On (Max) @ Id, Vgs

85mOhm @ 10A, 15V

Supplier Device Package

TO-247-3

Gate Charge (Qg) (Max) @ Vgs

16 nC @ 5 V

Input Capacitance (Ciss) (Max) @ Vds

810 pF @ 200 V

Current - Continuous Drain (Id) @ 25°C

20A (Ta)

Attribute	Value
Mfr	CoolCAD
Packaging	Bulk
Technology	SiCFET (Silicon Carbide)
Mounting Type	Through Hole
Package / Case	TO-247-3
Vgs(th) (Max) @ Id	2.4V @ 5mA
Operating Temperature	-40°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs	85mOhm @ 10A, 15V
Supplier Device Package	TO-247-3
Gate Charge (Qg) (Max) @ Vgs	16 nC @ 5 V
Input Capacitance (Ciss) (Max) @ Vds	810 pF @ 200 V
Current - Continuous Drain (Id) @ 25°C	20A (Ta)
