Step1: Product
Cnlinko YM-20-C04PE-02-001/YM-20-J04SX-02-401

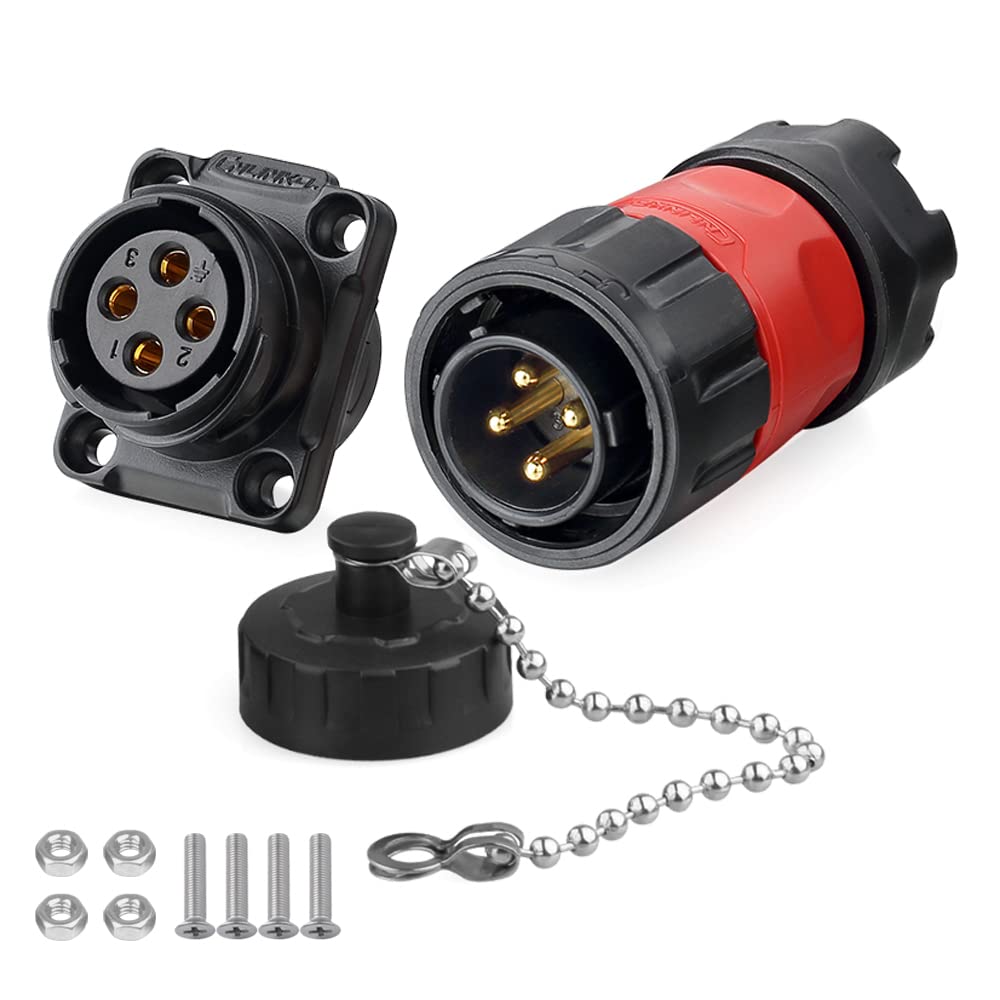

Image shown is a representation only
Manufacturer
Manufacturer No
YM-20-C04PE-02-001/YM-20-J04SX-02-401
Packaging
Case
Description
YM20 4P Plastic Flange Socket
Detailed Description
4 (Power) Position Circular Connector Plug, Female Sockets Solder
Datasheet
Mfr
Cnlinko
Series
YM
Packaging
Case
Shielding
Unshielded
Termination
Solder
Applications
Industrial, Medical, Testing Equipment & Measurement
Cable Opening
0.394" ~ 0.472" (10.00mm ~ 12.00mm)
Mounting Type
Panel Mount
Connector Type
Plug, Female Sockets
Fastening Type
Bayonet
Shell Material
Polybutylene Terephthalate (PBT)
Voltage Rating
500VAC
Contact Material
Copper Alloy
Mounting Feature
Flange
Primary Material
Plastic
Ingress Protection
IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof
Number of Positions
4 (Power)
Current Rating (Amps)
20A
Operating Temperature
-40°C ~ 120°C
Contact Finish - Mating
Copper Alloy
Contact Finish Thickness - Mating
157.5µin (4.00µm)
| Attribute | Value |
|---|---|
| Mfr | Cnlinko |
| Series | YM |
| Packaging | Case |
| Shielding | Unshielded |
| Termination | Solder |
| Applications | Industrial, Medical, Testing Equipment & Measurement |
| Cable Opening | 0.394" ~ 0.472" (10.00mm ~ 12.00mm) |
| Mounting Type | Panel Mount |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Bayonet |
| Shell Material | Polybutylene Terephthalate (PBT) |
| Voltage Rating | 500VAC |
| Contact Material | Copper Alloy |
| Mounting Feature | Flange |
| Primary Material | Plastic |
| Ingress Protection | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof |
| Number of Positions | 4 (Power) |
| Current Rating (Amps) | 20A |
| Operating Temperature | -40°C ~ 120°C |
| Contact Finish - Mating | Copper Alloy |
| Contact Finish Thickness - Mating | 157.5µin (4.00µm) |
