Step1: Product

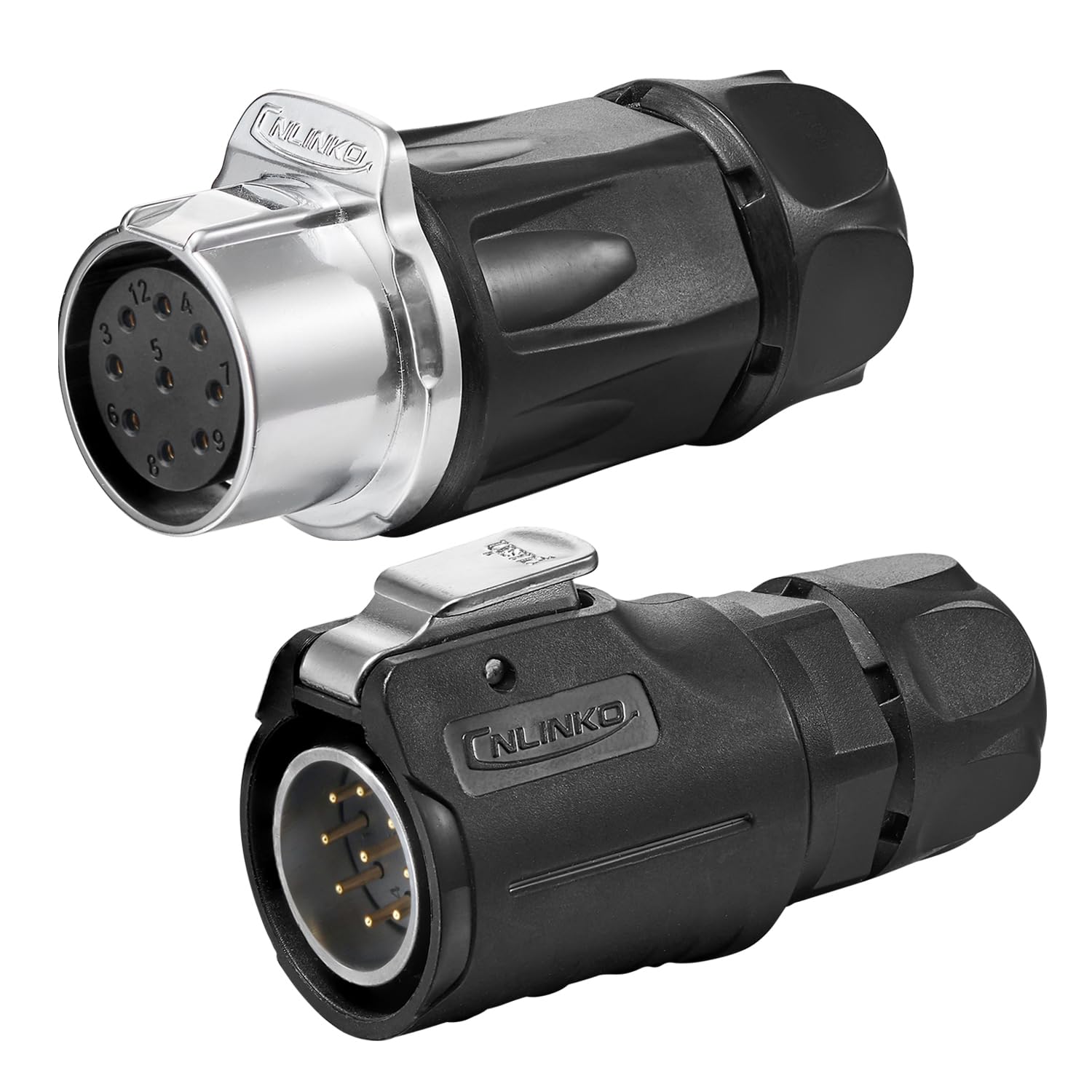

Cnlinko LP-20-C09PE-01-022/LP-20-J09PP-01-001
Image shown is a representation only
Manufacturer
Manufacturer No
LP-20-C09PE-01-022/LP-20-J09PP-01-001
Packaging
Case
Description
CNLINKO LP20 9 Pin Mating Plug
Detailed Description
9 (Data) Position Circular Connector Plug, Mating Target Solder
Datasheet
Mfr
Cnlinko
Color
Black
Series
LP
Packaging
Case
Shielding
Unshielded
Termination
Solder
Applications
Industrial, Instrumentation, Medical, Telecommunications
Shell Finish
Black
Cable Opening
0.197" ~ 0.256" (5.00mm ~ 6.50mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Mating Target
Fastening Type
Snap-On
Shell Material
Polybutylene Terephthalate (PBT)
Voltage Rating
250VAC
Contact Material
Copper Alloy
Primary Material
Composite
Ingress Protection
IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof
Number of Positions
9 (Data)
Current Rating (Amps)
5A
Operating Temperature
-40°C ~ 120°C
Contact Finish - Mating
Copper Alloy
Contact Finish Thickness - Mating
157.5µin (4.00µm)
| Attribute | Value |
|---|---|
| Mfr | Cnlinko |
| Color | Black |
| Series | LP |
| Packaging | Case |
| Shielding | Unshielded |
| Termination | Solder |
| Applications | Industrial, Instrumentation, Medical, Telecommunications |
| Shell Finish | Black |
| Cable Opening | 0.197" ~ 0.256" (5.00mm ~ 6.50mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Mating Target |
| Fastening Type | Snap-On |
| Shell Material | Polybutylene Terephthalate (PBT) |
| Voltage Rating | 250VAC |
| Contact Material | Copper Alloy |
| Primary Material | Composite |
| Ingress Protection | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof |
| Number of Positions | 9 (Data) |
| Current Rating (Amps) | 5A |
| Operating Temperature | -40°C ~ 120°C |
| Contact Finish - Mating | Copper Alloy |
| Contact Finish Thickness - Mating | 157.5µin (4.00µm) |
