Step1: Product

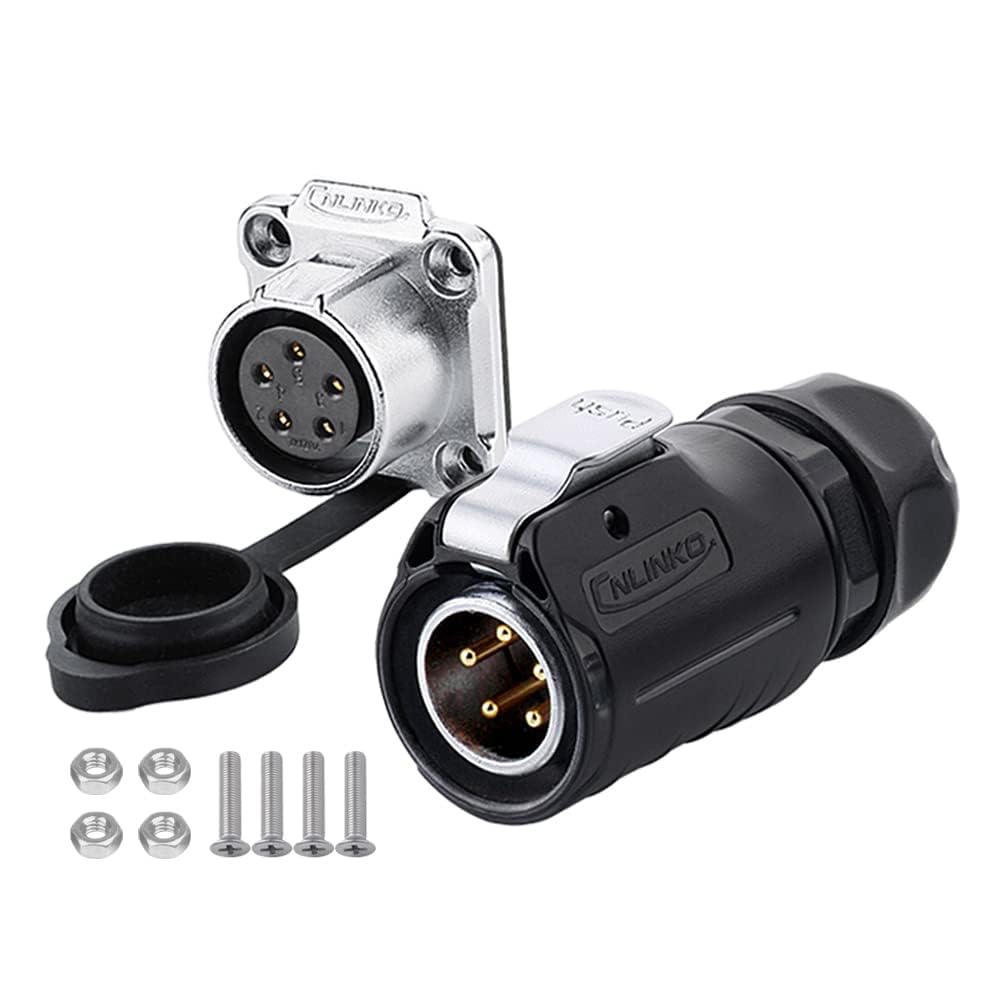

Cnlinko LP-20-C05PE-01-022 LP-20-J05SX-03-401
Image shown is a representation only
Manufacturer
Manufacturer No
LP-20-C05PE-01-022 LP-20-J05SX-03-401
Packaging
Case
Description
CNLINKO LP20 5 Pin Connector Kit
Detailed Description
5 (Data) Position Circular Connector Plug, Female Sockets Solder
Datasheet
Mfr
Cnlinko
Color
Black
Series
LP
Packaging
Case
Shielding
Unshielded
Termination
Solder
Applications
Industrial, Medical, Telecommunications, Test Equipment & Measurement
Shell Finish
Black
Cable Opening
0.394" ~ 0.472" (10.00mm ~ 12.00mm)
Mounting Type
Panel Mount
Connector Type
Plug, Female Sockets
Fastening Type
Snap-On
Shell Material
Polybutylene Terephthalate (PBT)
Voltage Rating
500VAC
Contact Material
Copper Alloy
Mounting Feature
Flange
Primary Material
Composite
Ingress Protection
IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof
Number of Positions
5 (Data)
Current Rating (Amps)
10A
Operating Temperature
-40°C ~ 120°C
Contact Finish - Mating
Copper Alloy
Contact Finish Thickness - Mating
157.5µin (4.00µm)
| Attribute | Value |
|---|---|
| Mfr | Cnlinko |
| Color | Black |
| Series | LP |
| Packaging | Case |
| Shielding | Unshielded |
| Termination | Solder |
| Applications | Industrial, Medical, Telecommunications, Test Equipment & Measurement |
| Shell Finish | Black |
| Cable Opening | 0.394" ~ 0.472" (10.00mm ~ 12.00mm) |
| Mounting Type | Panel Mount |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Snap-On |
| Shell Material | Polybutylene Terephthalate (PBT) |
| Voltage Rating | 500VAC |
| Contact Material | Copper Alloy |
| Mounting Feature | Flange |
| Primary Material | Composite |
| Ingress Protection | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof |
| Number of Positions | 5 (Data) |
| Current Rating (Amps) | 10A |
| Operating Temperature | -40°C ~ 120°C |
| Contact Finish - Mating | Copper Alloy |
| Contact Finish Thickness - Mating | 157.5µin (4.00µm) |
