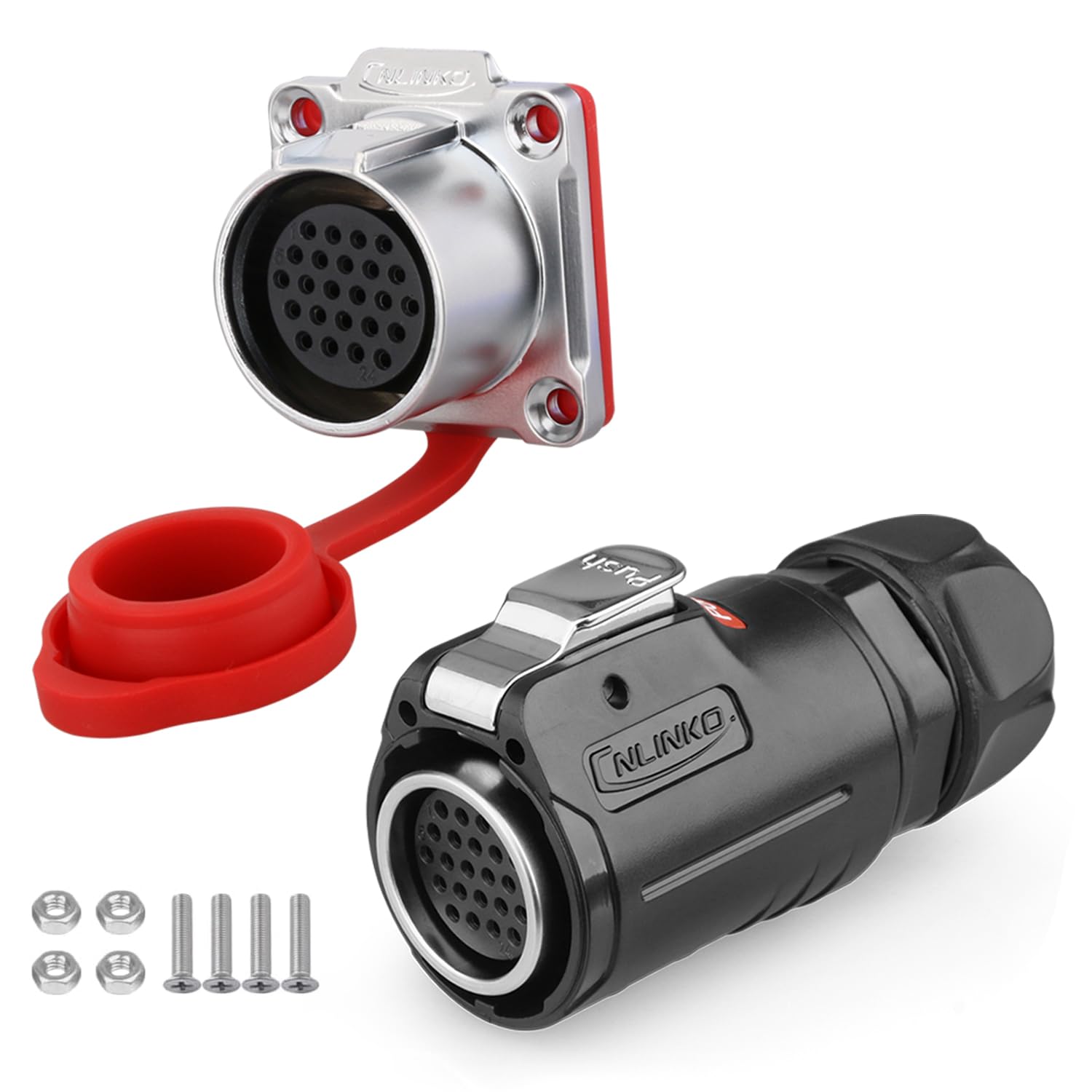

Cnlinko LP-24-C24PE-01-001/LP-24-J24SX-03-401
Image shown is a representation only
Manufacturer
Manufacturer No
LP-24-C24PE-01-001/LP-24-J24SX-03-401
Packaging
Case
Description
LP24 24P CONN PLUG RCPT SOLDER
Detailed Description
24 Position Circular Connector Plug, Female Sockets Solder
DataSheet
Mfr
Cnlinko
Series
LP
Packaging
Case
Shielding
Unshielded
Part Status
Active
Termination
Solder
Applications
Industrial, Medical, Testing Equipment & Measurement
Cable Opening
0.417" ~ 0.539" (10.60mm ~ 13.69mm)
Mounting Type
Panel Mount
Connector Type
Plug, Female Sockets
Fastening Type
Snap-On
Shell Material
Polybutylene Terephthalate (PBT)
Contact Material
Copper Alloy
Mounting Feature
Flange
Primary Material
Composite
Ingress Protection
IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof
Number of Positions
24
Current Rating (Amps)
5A
Operating Temperature
-40°C ~ 120°C
Contact Finish - Mating
Copper Alloy
Contact Finish Thickness - Mating
157.5µin (4.00µm)
| Attribute | Value |
|---|---|
| Mfr | Cnlinko |
| Series | LP |
| Packaging | Case |
| Shielding | Unshielded |
| Part Status | Active |
| Termination | Solder |
| Applications | Industrial, Medical, Testing Equipment & Measurement |
| Cable Opening | 0.417" ~ 0.539" (10.60mm ~ 13.69mm) |
| Mounting Type | Panel Mount |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Snap-On |
| Shell Material | Polybutylene Terephthalate (PBT) |
| Contact Material | Copper Alloy |
| Mounting Feature | Flange |
| Primary Material | Composite |
| Ingress Protection | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof |
| Number of Positions | 24 |
| Current Rating (Amps) | 5A |
| Operating Temperature | -40°C ~ 120°C |
| Contact Finish - Mating | Copper Alloy |
| Contact Finish Thickness - Mating | 157.5µin (4.00µm) |
