Step1: Product

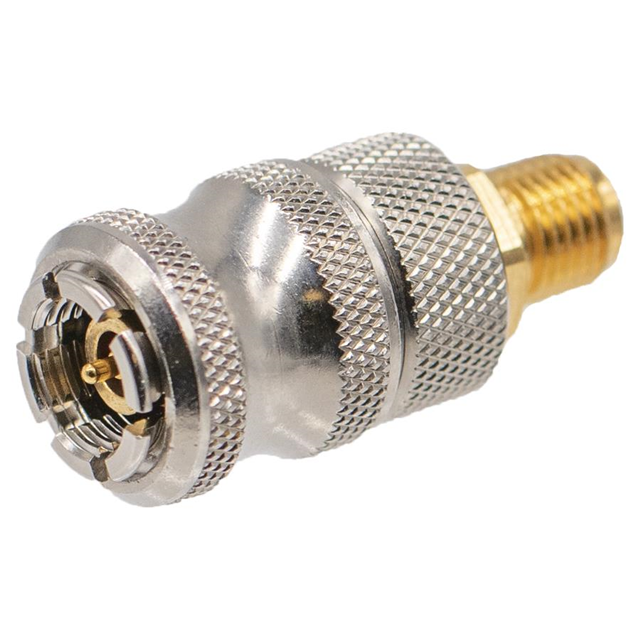

Cinch Connectivity Solutions Johnson 145-0901-841
Image shown is a representation only
Manufacturer
Manufacturer No
145-0901-841
Packaging
Bag
Description
COAX ADAPT 2.92MM TO 2.92MM
Detailed Description
Adapter Coaxial Connector 2.92mm (OS-2.9) Plug, Male Pin To 2.92mm (OS-2.9) Jack, Female Socket 50 Ohms
DataSheet
Mfr
Cinch Connectivity Solutions Johnson
Style
Straight
Impedance
50 Ohms
Packaging
Bag
Body Finish
Gold, Nickel
Part Status
Active
Adapter Type
Plug to Jack
Body Material
Brass
Center Gender
Female to Male
Mating Cycles
1000
Mounting Type
Free Hanging (In-Line)
Adapter Series
2.92mm to 2.92mm
Fastening Type
Snap-On, Threaded
Conversion Type
Same Series
Frequency - Max
40 GHz
Base Product Number
145-0901
Dielectric Material
Polystyrene (PS)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
Convert To (Adapter End)
2.92mm (OS-2.9) Jack, Female Socket
Convert From (Adapter End)
2.92mm (OS-2.9) Plug, Male Pin
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions Johnson |
| Style | Straight |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Gold, Nickel |
| Part Status | Active |
| Adapter Type | Plug to Jack |
| Body Material | Brass |
| Center Gender | Female to Male |
| Mating Cycles | 1000 |
| Mounting Type | Free Hanging (In-Line) |
| Adapter Series | 2.92mm to 2.92mm |
| Fastening Type | Snap-On, Threaded |
| Conversion Type | Same Series |
| Frequency - Max | 40 GHz |
| Base Product Number | 145-0901 |
| Dielectric Material | Polystyrene (PS) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
| Convert To (Adapter End) | 2.92mm (OS-2.9) Jack, Female Socket |
| Convert From (Adapter End) | 2.92mm (OS-2.9) Plug, Male Pin |
