Step1: Product
Cinch Connectivity Solutions Johnson 145-0791-301

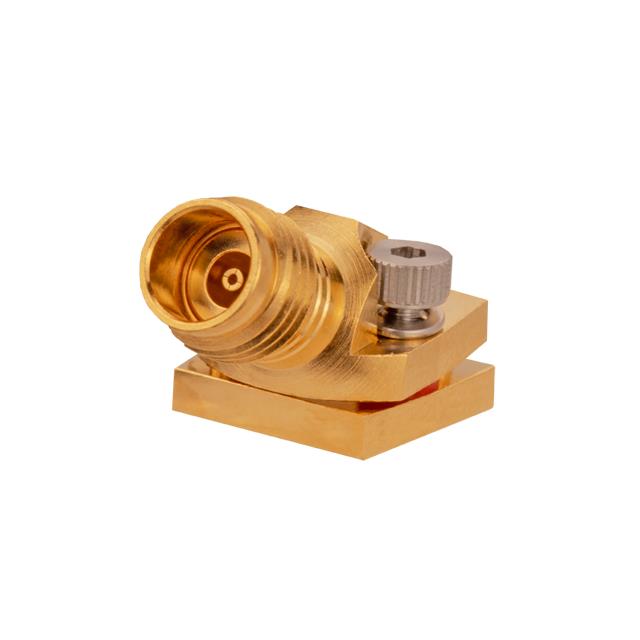

Image shown is a representation only
Manufacturer
Manufacturer No
145-0791-301
Packaging
Bag
Description
2.92MM JACK, SOLDERLESS PCB MOUN
Detailed Description
2.92mm Connector Jack, Female Socket 50 Ohms Panel Mount Compression
DataSheet
Mfr
Cinch Connectivity Solutions Johnson
Impedance
50 Ohms
Packaging
Bag
Body Finish
Gold
Part Status
Active
Body Material
Brass
Housing Color
Gold
Mating Cycles
500
Mounting Type
Panel Mount
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Insertion Loss
0.76dB
Voltage Rating
400 V
Connector Style
2.92mm
Frequency - Max
40 GHz
Number of Ports
1
Mounting Feature
Flange
Shield Termination
Screw
Contact Termination
Compression
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-55°C ~ 85°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Cinch Connectivity Solutions Johnson |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Gold |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Gold |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Insertion Loss | 0.76dB |
| Voltage Rating | 400 V |
| Connector Style | 2.92mm |
| Frequency - Max | 40 GHz |
| Number of Ports | 1 |
| Mounting Feature | Flange |
| Shield Termination | Screw |
| Contact Termination | Compression |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -55°C ~ 85°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
